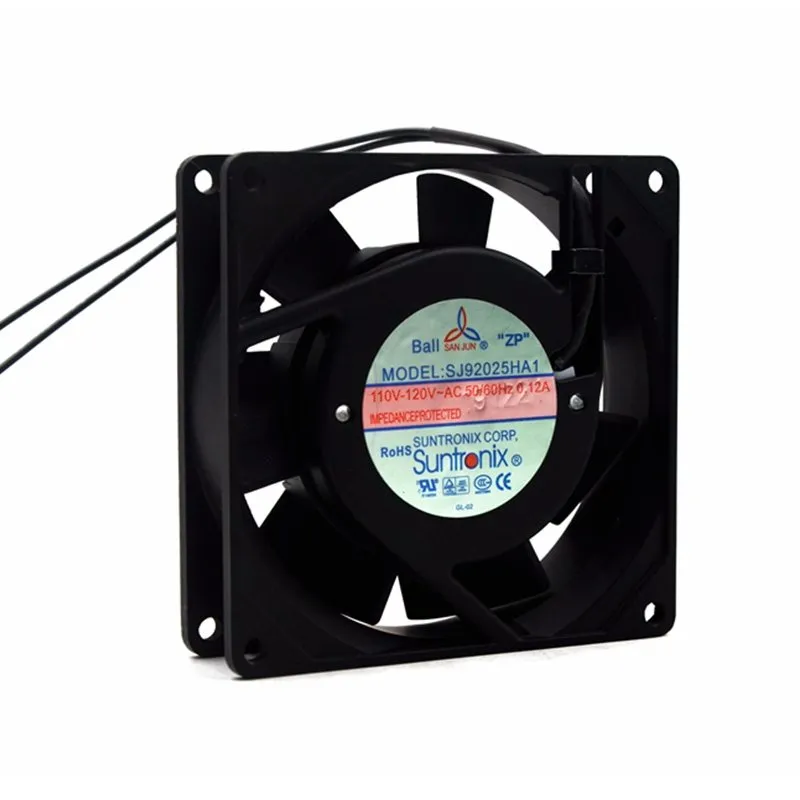

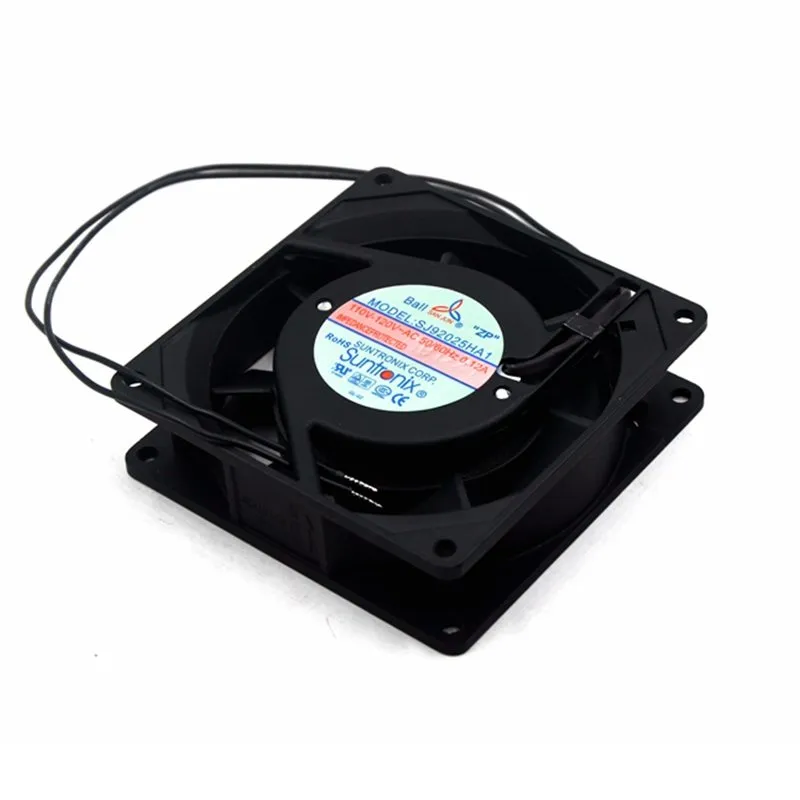

SANJUN SJ92025HA1 AC110V 0.12A Dual ball bearing cooling fan

Description

Model：SJ92025HA1

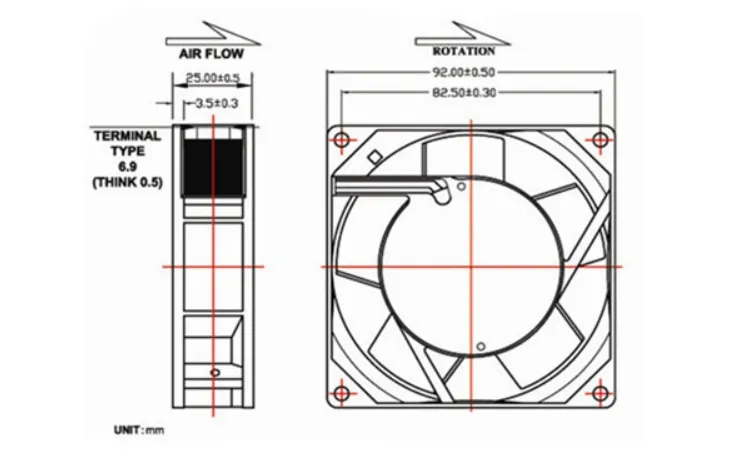

size: 92X92X25mm
Brand: sanjun Suntronix (Taiwan’s three giants)
model: 9225
bearing structure: B: Ball
voltage: AC / 110V AC (the store has another 110V)
Power: 13 / 9 (W)
frequency: 50 / 60 (Hz)
speed: 2300 / 2800 (R / min)
air volume: 1.13/1.36 (m3 / min)
Noise: 34 / 36 (db-a)
weight: 230 (g)
frame: black baking paint aluminum alloy die-casting anti-corrosion and moisture proof structure;
vane: injection molding, PBT + 30% glass line + VO class flame retardant;
bearing: imported ball bearing with high precision, long life and low noise;
Insulation: the enameled wire adopts class B insulation, with temperature resistance of 120 ℃;
wiring mode: lead type (wire length 25cm)
insulation resistance: above 500 megohm;
withstand voltage: leakage current 0.5mA. Withstand voltage 1500V / 1min;
operating voltage: 110V (voltage range: 85v-125v)
operating voltage: 220V (voltage range: 185v ~ 245v)
fan rotation direction: anticlockwise from the fan blade direction;
operating ambient temperature (℃): – 20 ℃ ~ 75 ℃ B: (ball bearing)
service life: working environment temperature 40 ℃ B: (ball bearing) 60000 (hours)
Long service life, can work for 24 hours continuously.
