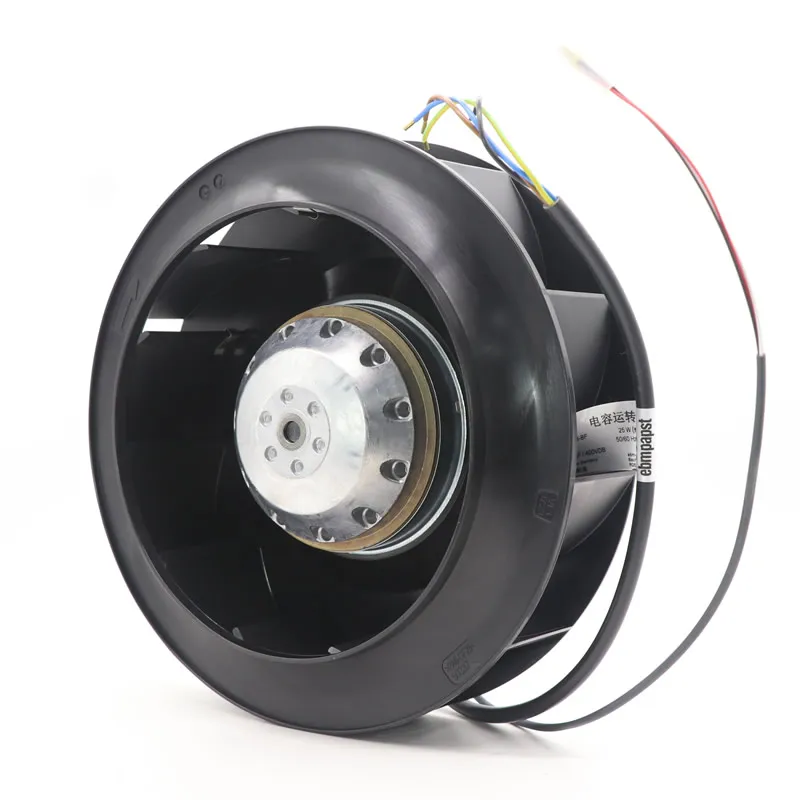

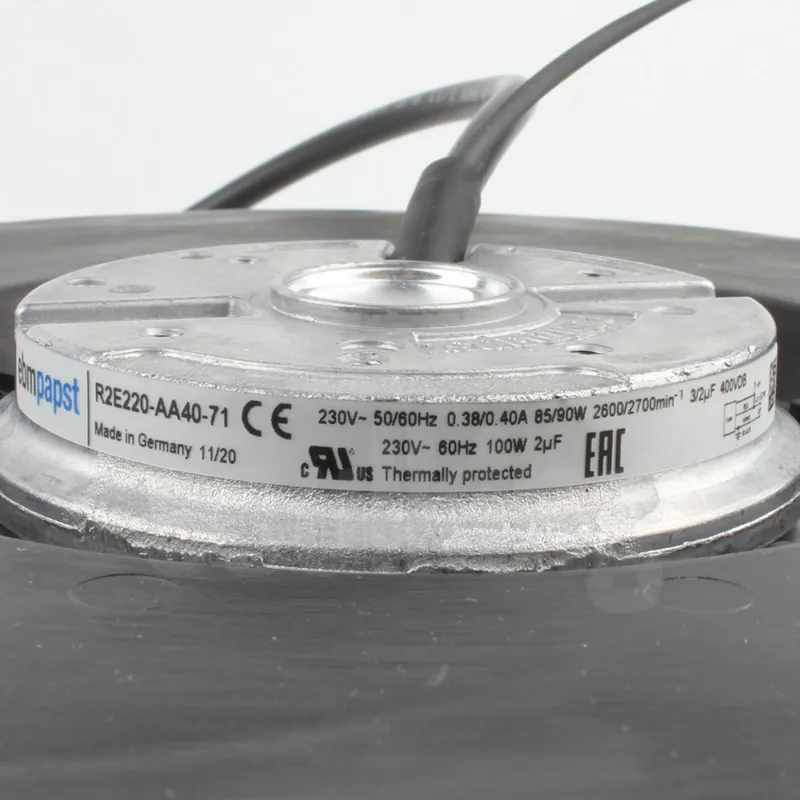

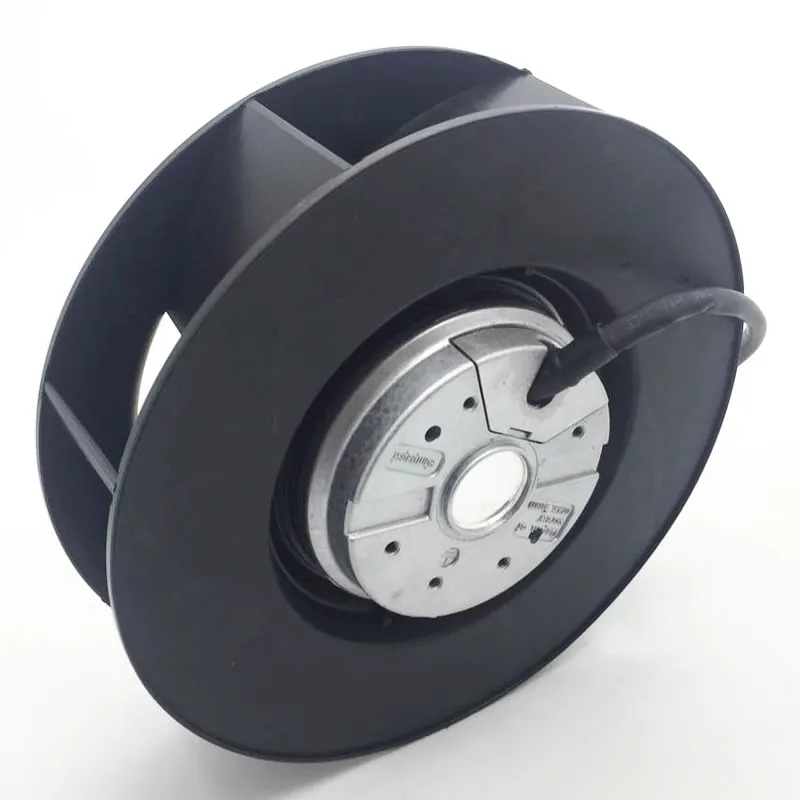

R2E220-AA40-71 ebmpapst AC centrifugal fan

$129.99

SKU: R2E220-AA40-71 Category: Brand:

Description

Model: R2E220-AA40-71
Brand:ebmpapst
Supply Voltage: 230VAC
Voltage Type: AC
Fan Frame Size: 252mm
External Depth: 71mm
Flow Rate:15m³/min
AirFlow:530CFM
Flow Rate – Imperial: 530CFM
Air Flow – m3/min: 15m³/min
Noise: 74dBA
Power Rating:100 W
Height:220 mm
Depth:220 mm
Width:71 mm
Bearing Type: Ball Bearing
Power Connection Type: 7 Lead Wires
Power Rating: 90W
Product Range: R2E Series
IP Rating: IP44

Additional information

Weight 2 kg
Manufacturer Part No:

R2E220-AA40-71

Manufacturer

ebmpapst

Motor

M2E068-BF

Nominal voltage

230VAC

Frequency

50~60Hz

Valid for approval / standard

CE

Speed

2600~2700min-1

Power input

85~90W

Current draw

0.38~0.40A

Capacitor voltage

400VDB

Max. ambient temperature

40°C

Mass

1.3 kg

Size

220mm

Material of impeller

Plastic PA6, fibreglass-reinforced

Direction of rotation

Clockwise, seen on rotor

Type of protection

IP44

Motor bearing

Ball bearing

Motor protection

Thermal overload protector (TOP) wired internally

Product conforming to standard

EN 60335-1; CE

Approval

CCC; UL 507; CSA C22.2 Nr.113

Max. permissible ambient motor temp. (transp./ storage)

+ 80 °C

Min. permissible ambient motor temp. (transp./storage)

– 40 °C
