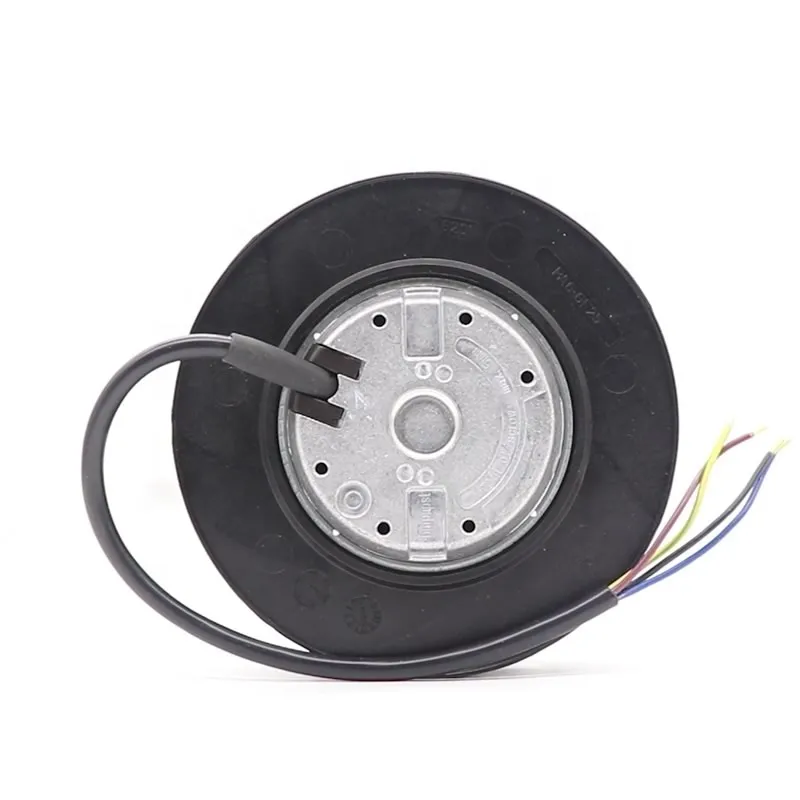

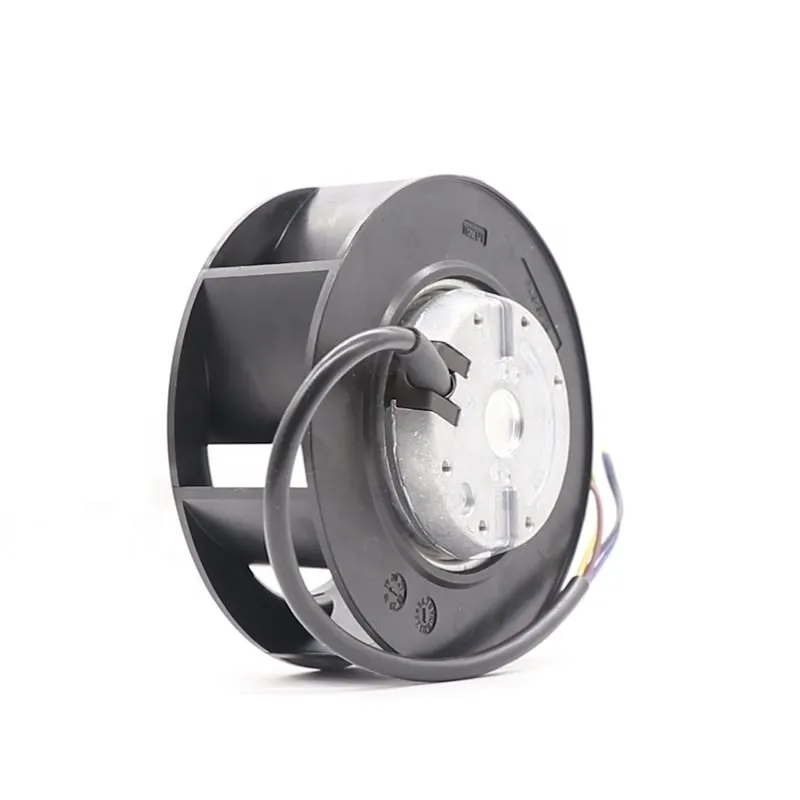

R2E133-BH66-07 ebmpapst AC230V 0.13A 28W Centrifugal Fan
R2E133-BH66-07 ebmpapst AC230V 0.13A 28W Centrifugal Fan
R2E133-BH66-07 ebmpapst AC230V 0.13A 28W Centrifugal Fan

R2E133-BH66-07 ebmpapst AC230V 0.13A 28W Centrifugal Fan

(1 customer review)

$48.62

SKU: R2E133-BH66-07 Category: Brand:

Description

Model Number：R2E133-BH66-07
Brand Name：ebmpapst
Type：Centrifugal Fan
Applicable Industries：Air purifier fan
Customized support：OEM
Electric Current Type：AC
Blade Material：Plastic
Mounting：FREE STANDING
Place of Origin：Germany
Voltage：230(V)
Warranty：1 Year
After-sales Service Provided：Online support
Type：centrifugal Fan
Nominal voltage：230V
Bearing Type：Ball Bearing
Power input：25/28(w)
Speed：2700~3200(r/min)
Application：General industry
current：0.11~0.13(A)
Size：133mm
Material：PA plastic
Air flow：240 m3/h
Number of blades：7
Direction of rotation：Clockwise, seen on rotor
Type of protection：IP 44
Insulation class：”B”
Max. permissible ambient motor temp：+ 80 °C
Min. permissible ambient motor temp：- 40 °C
Mounting position：Any
Condensate discharge holes：None
Operation mode：S1
Touch current acc. IEC 60990：< 0.75 mA Motor protection：Thermal overload protector (TOP) wired internally Cable exit：Variable Protection class：I (if protective earth is connected by customer) Product conforming to standard：EN 60335-1; CE Approval：CCC; EAC

Additional information

Weight 2.5 kg
Dimensions 25 × 25 × 18 cm
Model Number

R2E133-BH66-07
Certification

None
Origin

CN(Origin)
Type

HVAC Systems
Motor

M2E052-BF
Phase

1~
Nominal voltage

230VAC
Frequency

50/60 Hz
Valid for approval/standard

CE
Speed (rpm)

2700/3200 min-1
Power consumption

25/28 W
Current draw

0.11/0.13 A
Capacitor voltage

400 VDB
Capacitor standard

S0 (CE)
Min. ambient temperature

-25
Max. ambient temperature

55/65
Starting current

0.2/0.21 A
Fan size

133 mm
Rotor surface

Cast in aluminum
Impeller material

PA 6 plastic, glass-fiber reinforced
Number of blades

7
Direction of rotation

Clockwise, viewed toward rotor
Degree of protection

IP44
Insulation class

"B"
Max. permitted ambient temp. for motor

+ 80
Min. permitted ambient temp. for motor

– 40
Installation position

Any
Condensation drainage holes

None
Mode

S1
Motor bearing

Ball bearing
Motor protection

Thermal overload protector (TOP) internally connected
With cable

Variable
Protection class

I (with customer connection of protective earth)
