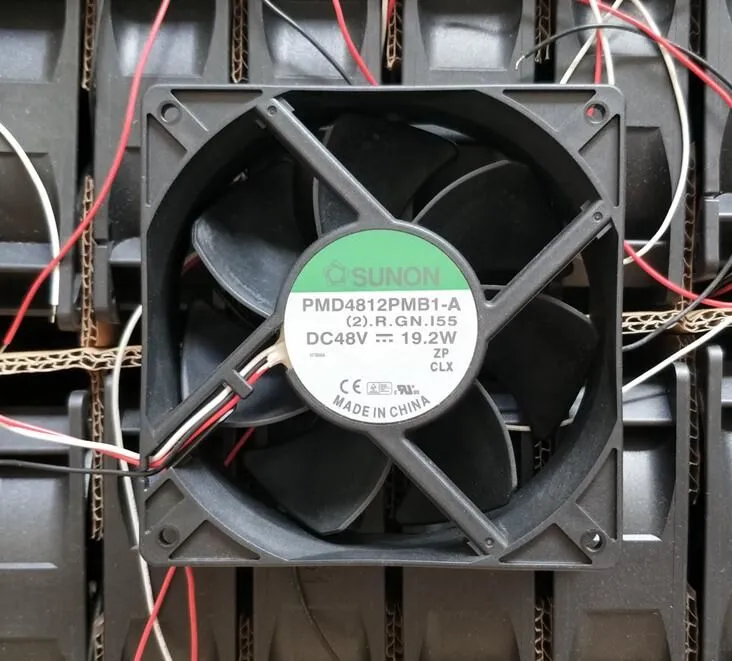

PMD4812PMB1-A SUNON DC48V Inverter fan
PMD4812PMB1-A SUNON DC48V Inverter fan

PMD4812PMB1-A SUNON DC48V Inverter fan

(1 customer review)

$26.99

988 in stock

SKU: PMD4812PMB1-A Category: Brand:

Description

PMD4812PMB1-A SUNON
Fan Type: DC
Fan Type: Axial
Power supply voltage: 48V DC
Fan size: 120x120x38mm
Power consumption: 19.2W
Rated current: 400mA
Fan efficiency: 323m3/h
Noise level: 54dBA
Bearing Type: Ball Bearing
Signal output::::F type : Frequency GeneratorR type : Rotation Detector:::F type
Rotation speed: 4200 (±10%)rpm
Weight: 330g
Current and power dissipation tolerance: ±15%
Minimum insulation resistance: 10MΩ
Fan Material: Thermoplastic
Housing material: thermoplastic material
Insulation class: E
Leads: 3 cables
Operating temperature: 10…70°C
Static pressure: 16.5mm H2O
Cable length: 330mm
Fan Motor: Brushless DC Motor
Flammability class: UL94V: 0
Additional features: automatic restart
Operating voltage: 24…56V

Additional information

Weight 1 kg
Model Number

PMD4812PMB1-A
Brand Name

SUNON
Heatsink Material

Copper
Power

1.2W
Fan Life

40000 hrs
Fan Speed Control

2000RPM
Power Interface

3pin
Fan Size

120x120x25mm
Noise

25dBA
Application

Computer Case
Lines

3 Lines
Type

Fan
Package

Yes
Bearing

Two Ball Bearing
Air Volume

30CFM
