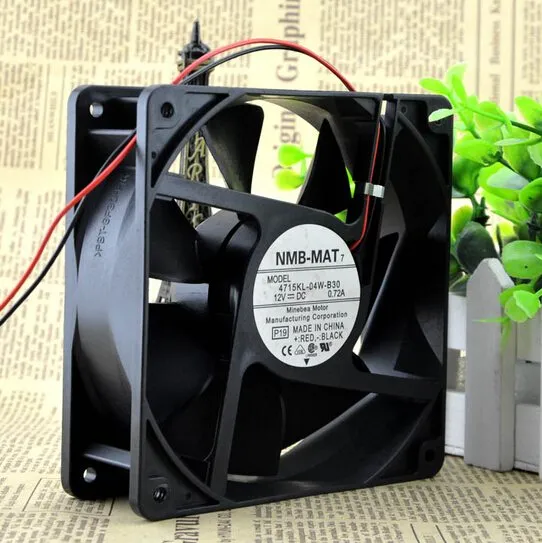

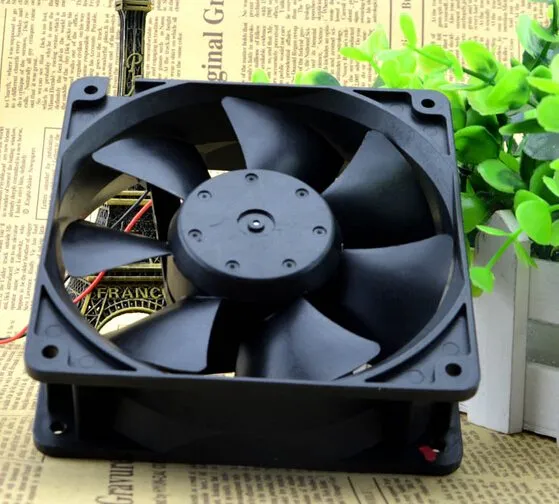

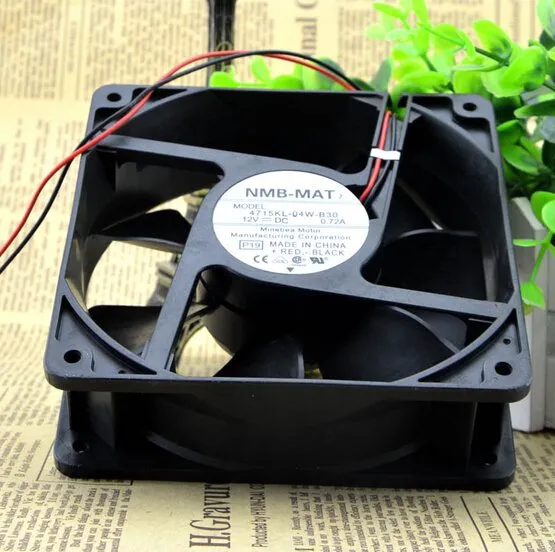

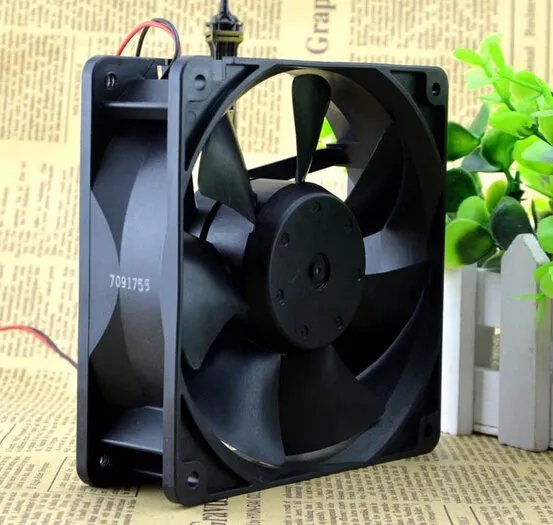

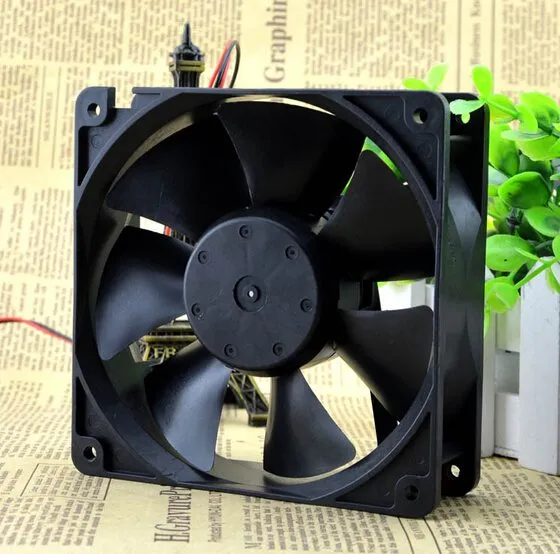

NMB 4715KL-04W-B30 DC12V 0.72A 2-lines cooling fan

Description

Product Name: 4715KL-04W-B30

Product specifications: 120MM x 120MM x 38MM

Input voltage: DC12V

Voltage range: DC8V.–12.6V

Motor speed: 3600 rpm

Working current: 0.72A

Input power: 8.6W

Air flow: 2.68 cubic meters / minute

Direction of rotation: from the rotor, direction counterclockwise rotation

Pressure range: 110Pa

Bearing structure: maintenance free NMB double ball bearing

Service life: 25 degrees C L10 the life expectancy of 50000 hours

Insulation grade: E

The noise index: 50

The temperature range of 70 DEG C: -10.

Materials: one fan frame: injection molding, PBT 30% + glass + VO level flame retardant fan: a injection molding,

PBT 30% + glass + VO level flame retardant used in compliance with international environmental standards America GE plastic ring
