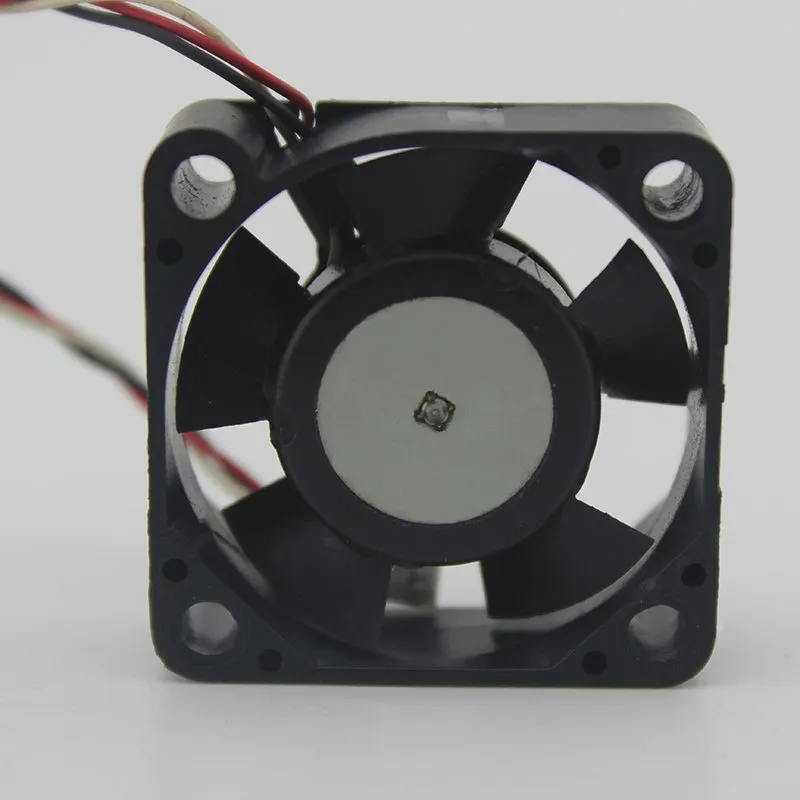

NMB 1204KL-04W-B59 12V 0.12A 3CM inverter fan

Description

Manufacturer Part Number: 1204KL-04W-B59-B00
Description: FAN DC AXIAL 30X10 12V LOCK RTR
Minimum order quantity: 1
Series: 1204KL
Voltage – rated: 12VDC
Size / Size: Square – 30mm long x 30mm high x 10mm wide
Airflow: 3.8 CFM (0.108 m / min)
Static pressure: 0.216 inch water column (53.8 Pa)
Bearing Type: Ball
Fan type: tube axis type
Features: Lock the rotor sensor
Noise: 27 dB
Power (W): 0.96W
RPM: 10500 RPM
Termination: 3 leads
Weight: 0.019 lbs (8.62 g)
Operating temperature: 14 ~ 158 ° F (-10 ~ 70 ° C)
