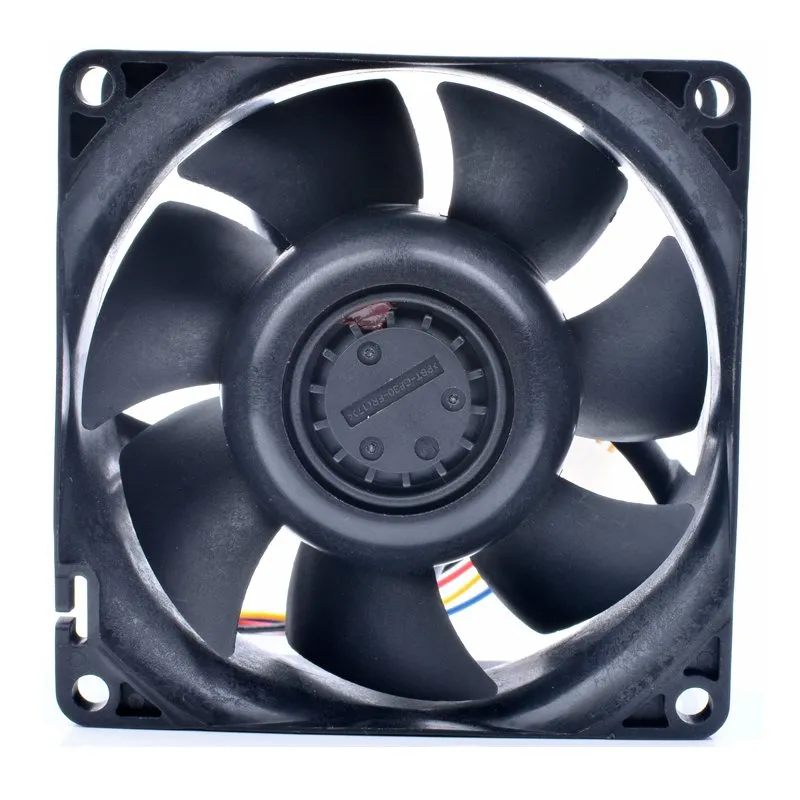

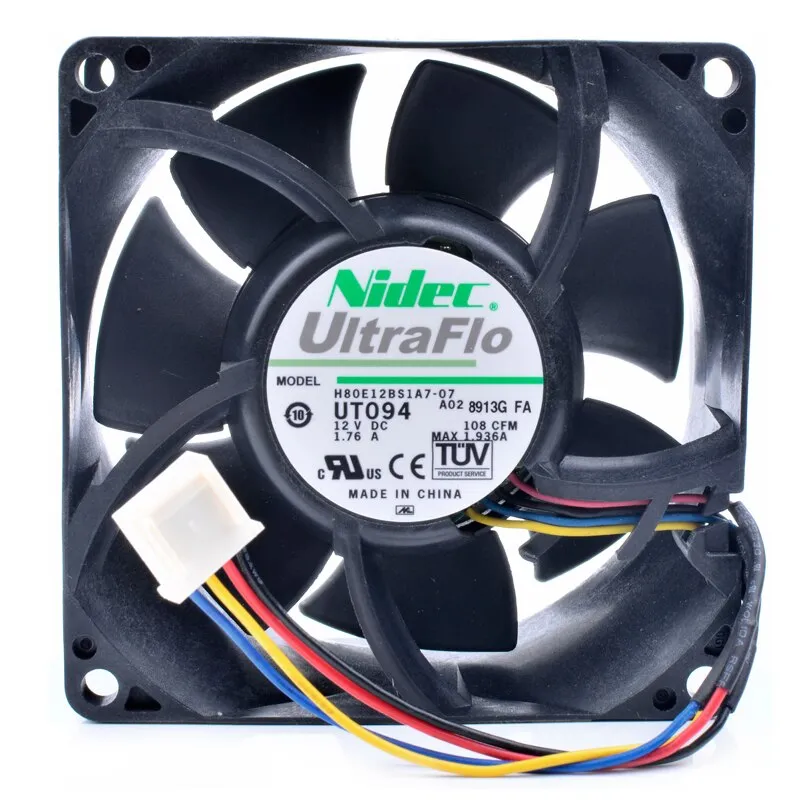

Nidec H80E12BS1A7-07 DC12V 1.76A server large air volume cooling fan

$9.99

136 in stock

SKU: H80E12BS1A7-07 Category: Tags: , Brand:

Description

Brand Nidec H80E12BS1A7-07
Dimensions: 80x80x38mm
Rated voltage: 12V
Working voltage: 10.2-13.8V
Rated current: 1.76A
Input power: 20.76W
Speed: 7800RPM ± 5% Support PWM intelligent speed regulation
Plug: standard motherboard 4P interface, cable length is about 20 cm
Fan frame: one-shot injection molding, PBT + 30% glass fiber + VO flame retardant;
Wind blade: one-shot injection molding, PBT + 30% glass fiber + VO flame retardant;
Fan rotation direction: counterclockwise when viewed from the direction of fan blades;
Operating temperature: -10 degrees Celsius to +70 degrees Celsius;
Storage temperature: -40 ° C to + 70 ° C;
Bearing: high-precision double ball bearing;
Power range: plus or minus 15% of rated power;
Insulation resistance: greater than 500 megohms;
Withstand voltage: sink leakage current 0.5mA 500V / 1 minute;
Working life: 80,000 hours at ambient temperature θ25 °.

This fan is a violent fan with super strong air volume and very loud sound. The fan supports PWM intelligent temperature control technology. Special fan, please consider carefully before shooting. This fan is suitable for use in equipment rooms or servers. Since the fan supports PWM temperature control technology, it is also a very good choice for overclocked players.

Additional information

Weight 1 kg
Application

Computer Case

Lines

4 Lines

Model Number

H80E12BS1A7-07

Type

Fan

Package

Yes

Air Volume

59.54 CFM

Power

5.1 W

Bearing

Two Ball Bearing

Power Interface

4PIN

Fan Life

50000 hrs

Fan Speed Control

No RPM

Brand Name

nidec

Noise

45dba

Fan Size

80x80x38mm
