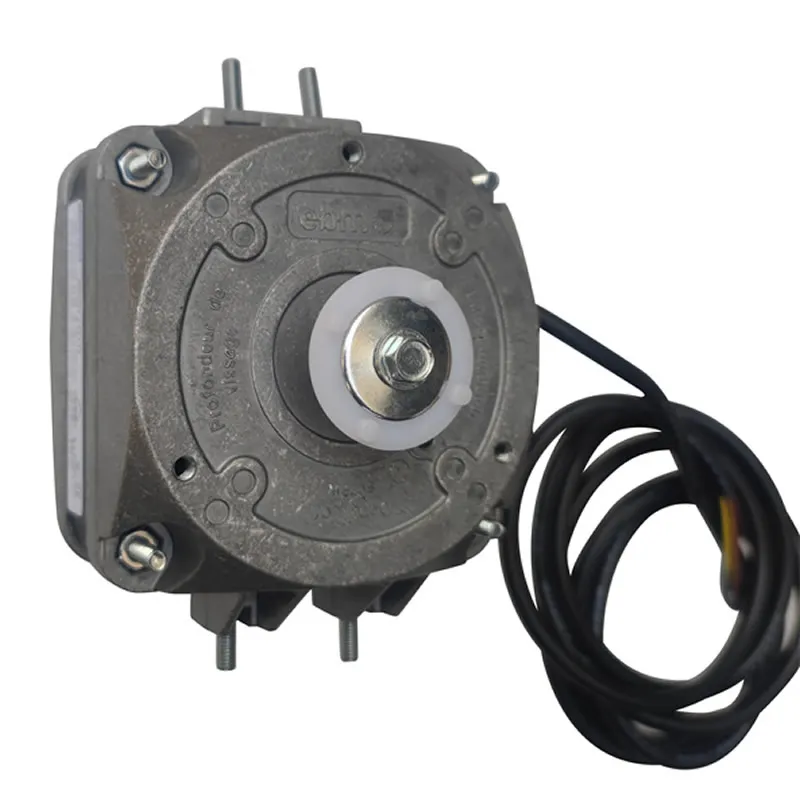

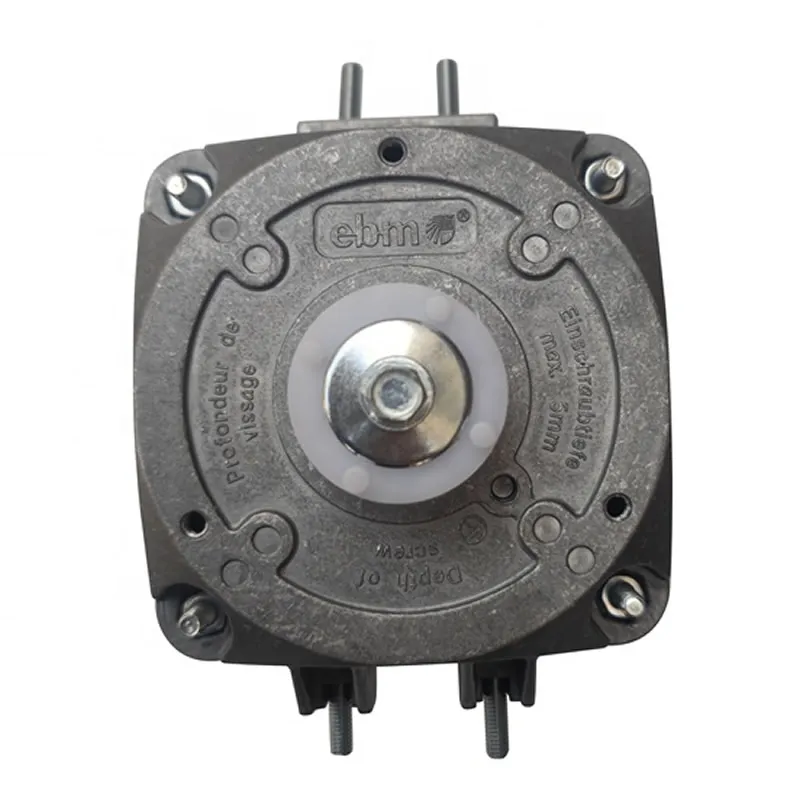

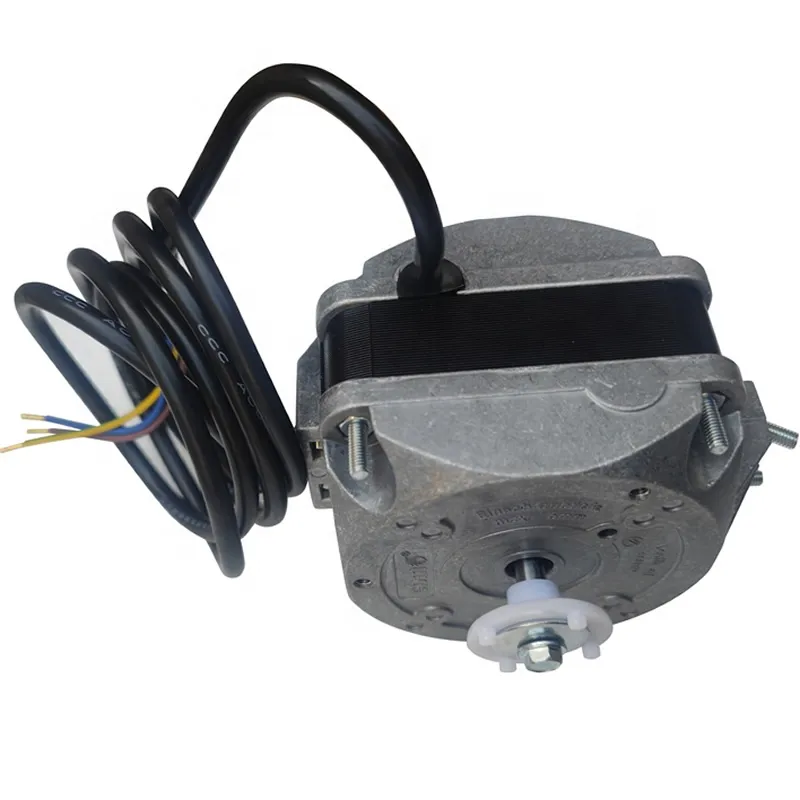

M4Q045-CA01-75 ebmpapst AC motor

Description

Brand Name：ebmpapst
Model Number：M4Q045-CA01-75
Type|: Axial Flow Fan
Electric Current Type：AC
Mounting：FREE STANDING
Blade Material：Stainless Steel
Place of Origin：Germany
Voltage：230(V)
Power：30/31W
speed：1300/1550RPM
current：0.2 A
frequency：50/60Hz
Product Category：AC Motors
Bearing Type：Sleeve bearing
Applicable Industries:Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction works , Energy & Mining
The M4Q045-CA01-75 is an AC Shaded-pole Motor with two-pole construction, features a simple, robust and maintenance-free design. It is primarily used in low-torque applications.
Track dimension 26mm (height 51mm) or 18mm (height 48mm) possible foot mounting.
A and B-sides tapped holes 3xM4, diameter of pitch circle 71.4mm bearing shields.
Mounting of guard grille and wall ring on A-side bearing shield.
Opposite M4 are securely installed in the feet.
IP42 Protection rating.
Jacketed cable 3×0.5mm with brass lead tips electrical connection.

Applications:
Industrial, Automation & Process Control, Motor Drive & Control.
