Description
Full metal frame leaf high temperature resistant fan
Fan frame: black painted aluminum alloy die-casting anti-corrosion wind blade: full metal fan blade fan rotation: from the fan blade direction to see counterclockwise running motor: cover pole motor temperature: -40 degrees Celsius to +75 degrees Celsius Storage temperature: -50 degrees Celsius to +90 degrees Celsius withstand voltage: sink current 0.5mA 500V / 1 minute working life: 80000 hours when the ambient temperature is 25 degrees
Yurui IKURA, Japan
Product model: 7556X-TP
Product specifications: 172*150*55MM
Input voltage: 200V
Input power: 40/43W
Working frequency: 50/60HZ
Number of revolutions: 3000r/min
Air flow: 5.2m3/h
Static pressure: 114.66PA
Direction of rotation: counterclockwise rotation from the rotor
Bearing structure: maintenance-free double ball bearing
Service life: 25. C time L10 life expectancy of 60,000 hours
Insulation class: 42DBA
Temperature range: -10.60. C
Material frame: aluminum casting
Blade: Polycarbonate (flame retardant grade V-O)
Anti-burn ring device: built-in thermal protection device

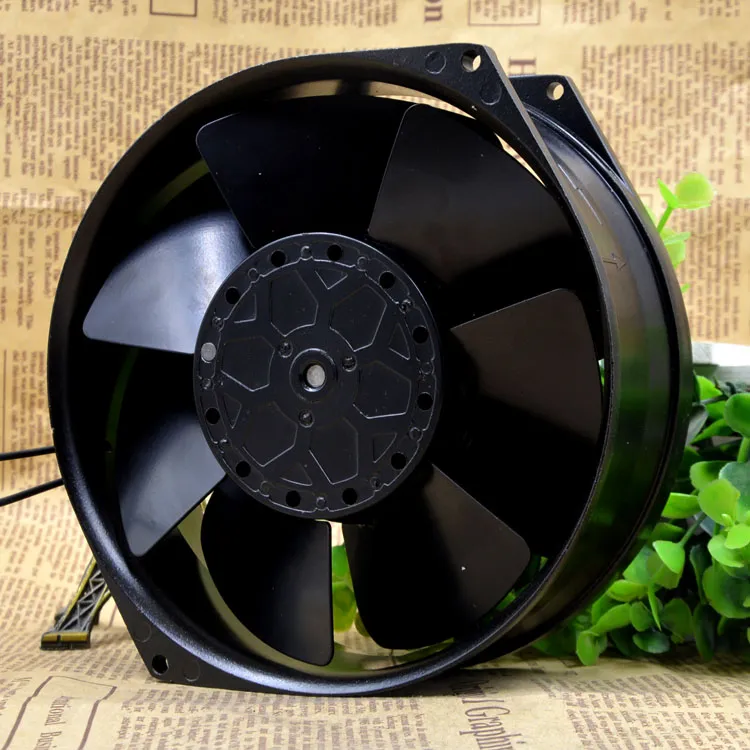

U7556KX-TP Japan Yuliang IKURA 230V 172*150*55 High temperature resistant fan
