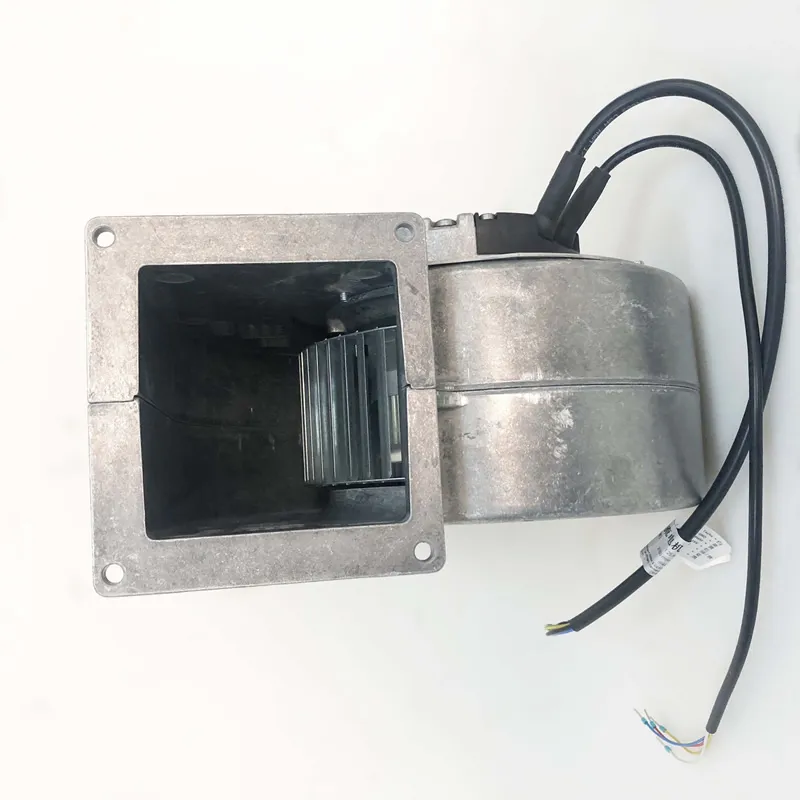

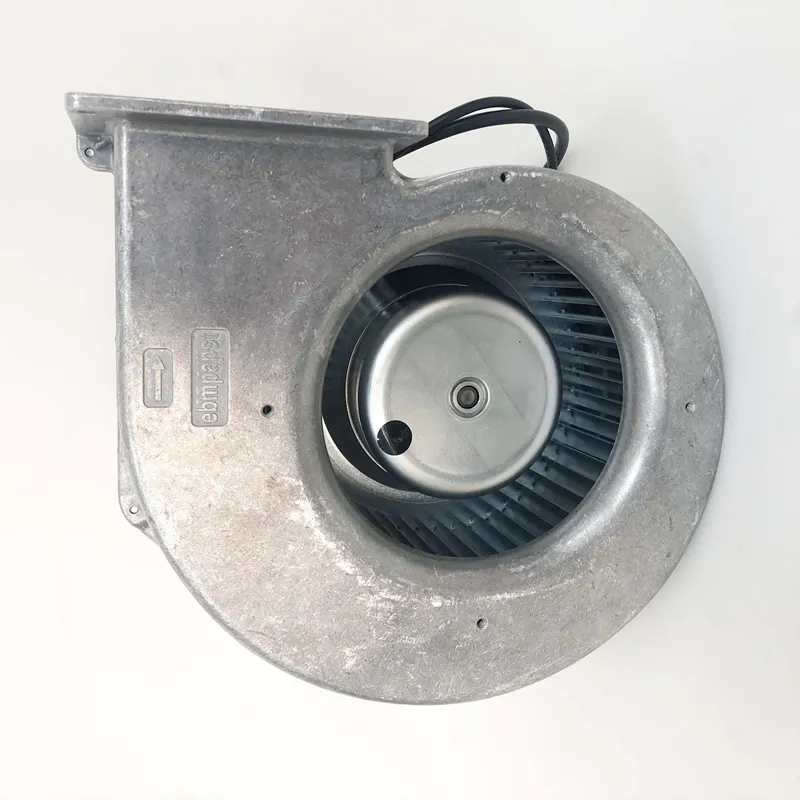

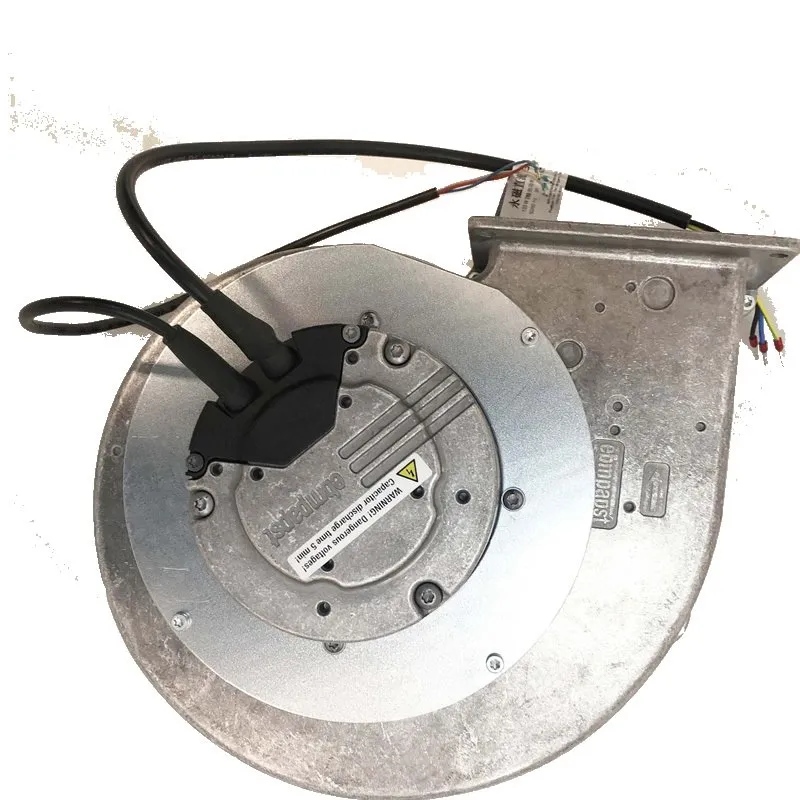

G3G160-AC50-01 ebmpapst EC centrifugal fan
G3G160-AC50-01 ebmpapst EC centrifugal fan
G3G160-AC50-01 ebmpapst EC centrifugal fan
G3G160-AC50-01 ebmpapst EC centrifugal fan

G3G160-AC50-01 ebmpapst EC centrifugal fan

$1,199.00

SKU: G3G160-AC50-01 Category: Brand:

Description

Model:G3G160-AC50-01
Brand:Ebm papst
Supply Voltage:230V ac
Blower Type:Centrifugal
AC or DC Operation:AC
Series:G3G
Height:262mm
Width:227mm
Depth:130mm
Dimensions:262x227x130mm
Fan Speed:2150rpm
Bearing Type:Ball
Mounting Hole Spacing:105x115mm
Direction of Curve:Forward
Commutation Type:Electronic
Horizontal Hole Spacing:115mm
Vertical Hole Spacing:105mm
Mounting Hole Diameter:6.3mm
Sensor Type Open:Collector

Electronically commutated motor blower with an external rotor motor
Motors are sealed for life
Maintenance free
Class B insulation
Housing material is die-cast aluminium
Impeller is forward curved multi-vane type
Intelligent electronics for numerous control functions
Body is made from heavy-duty, riveted galvanised steel
Ball bearing type may be mounted in any position
Long service life

Additional information

Weight 4 kg
Type

G3G160-AC50-01
Motor

M3G074-CF
Phase

1~
Nominal voltage

230VAC
Nominal voltage range

200~277VAC
Frequency

50/60hz
Speed (rpm)

2150min-1
Power consumption

170W
Current draw

1.25A
Min. ambient temperature

-25°C
Max. ambient temperature

60°C
Size

160mm
Motor size

74
Rotor surface

Thick-film passivated
Impeller material

Sheet steel, galvanized
Housing material

Die-cast aluminum
Direction of rotation

Clockwise, viewed toward rotor
Degree of protection

IP44
Insulation class

"B"
Moisture (F) / Environmental (H) protection class

H0+; F3-1
Max. permitted ambient temp. for motor (transport/storage)

+ 80°C
Min. permitted ambient temp. for motor (transport/storage)

– 40°C
Installation position

Shaft horizontal or rotor on top; rotor on bottom on request
Condensation drainage holes

None
Mode

S1
Motor bearing

Ball bearing
Technical features

– Tach output – Soft start – Motor current limitation – Control input 0-10 VDC / PWM – Output 10 VDC, max. 1.1 mA
EMC immunity to interference

According to EN 61000-6-2
EMC circuit feedback

According to EN 61000-3-2/3
EMC interference emission

According to EN 61000-6-3 (household environment)
Touch current according to IEC 60990 (measuring circuit Fig. 4, TN system)

<= 3.5 mA
Motor protection

Thermal overload protector (TOP) internally connected
With cable

Variable
Protection class

I (with customer connection of protective earth)
Conformity with standards

EN 60335-1; CE
Approval

UL 1004-3 + 60730-1; EAC; CCC; CSA C22.2 No. 77 + CAN/CSA-E60730-1
