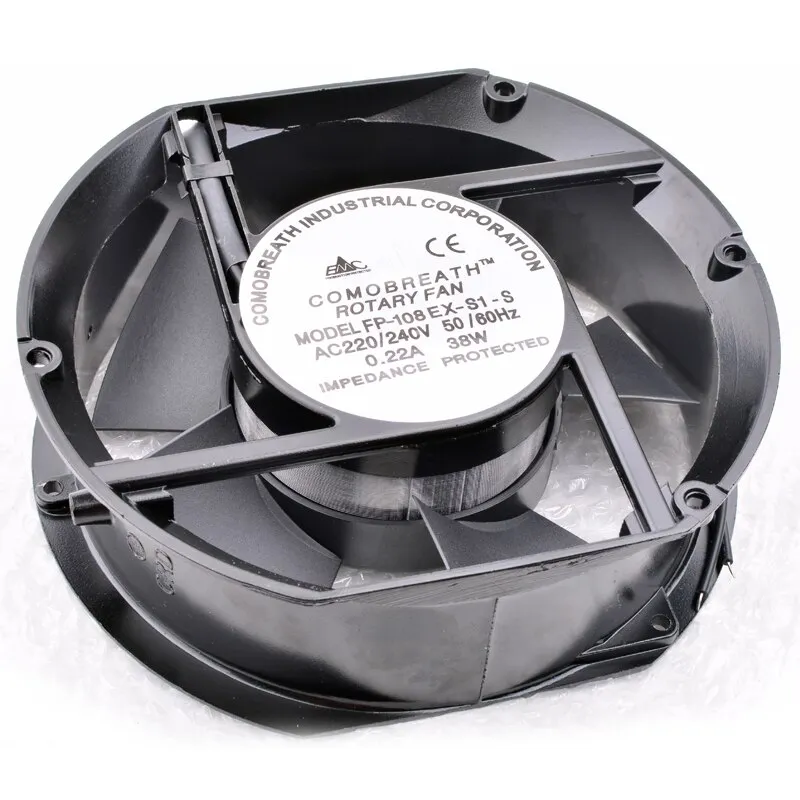

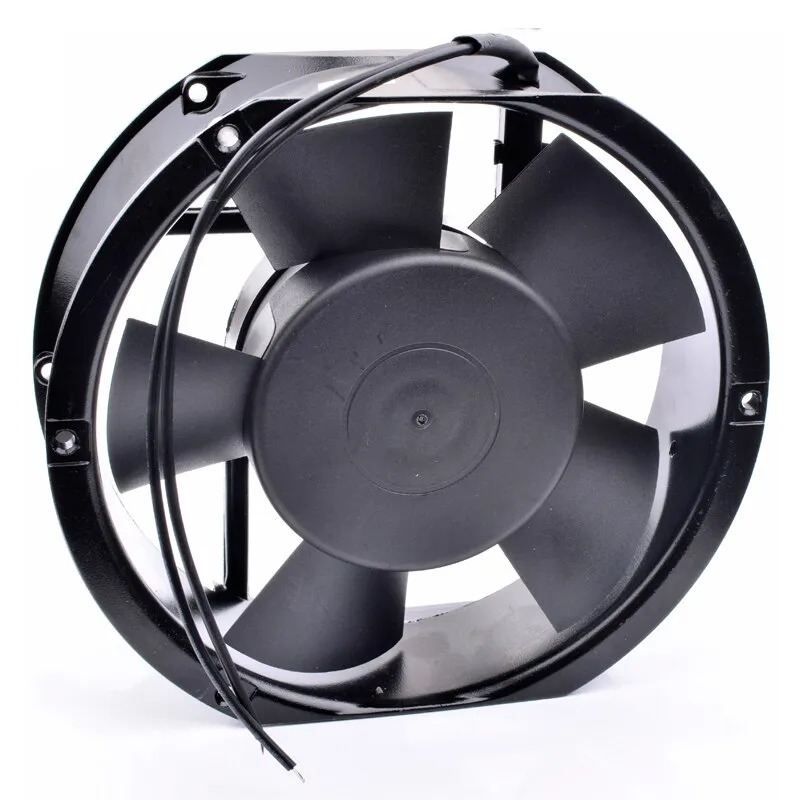

FP-108EX-S1-S 220V 38W 0.22A Dual Bearing Axial Cooling Fan

Description

Model number: FP-108EX-S1-B
Specifications: 172x150x51MM
Bearing structure: B: BaLL (ball bearing)
Voltage: 220 ～ 240V (AC)
Power: 38 (W)
Frequency: 50/60 (Hz)
Speed: 2650-2950 (R / min)
Air volume: 5.10 / 5.66 (m3 / min)
Noise: 52/55 (dB-A)
Weight: 920 (g)
Packing: Individual packing box, ordinary cardboard box packing 24 units / 1 full box;
Frame: Black-painted aluminum alloy die-casting anti-corrosion and moisture-proof structure;
Wind blade: one-shot injection molding, PBT + 30% glass line + VO flame retardant;
Bearing: Imported high-precision, long-life and low-noise imported ball bearings;
Insulation: The enameled wire adopts Class B insulation and has a temperature resistance of 120 degrees Celsius;
Wiring method: lead type (line length 25CM)
Insulation resistance: above 500 megohms;
Withstand voltage: leakage current 0.5mA. Withstand voltage 1500V / 1 minute;
Operating voltage: 220V (voltage range: 185V ～ 245V)
Fan rotation direction: counterclockwise when viewed from the direction of fan blades;
Operating ambient temperature (℃): -20 ℃ ～ 50 ℃ B: (ball bearing)
Life: working environment temperature 40 ℃ B: (ball bearing) 50000 (hour)
