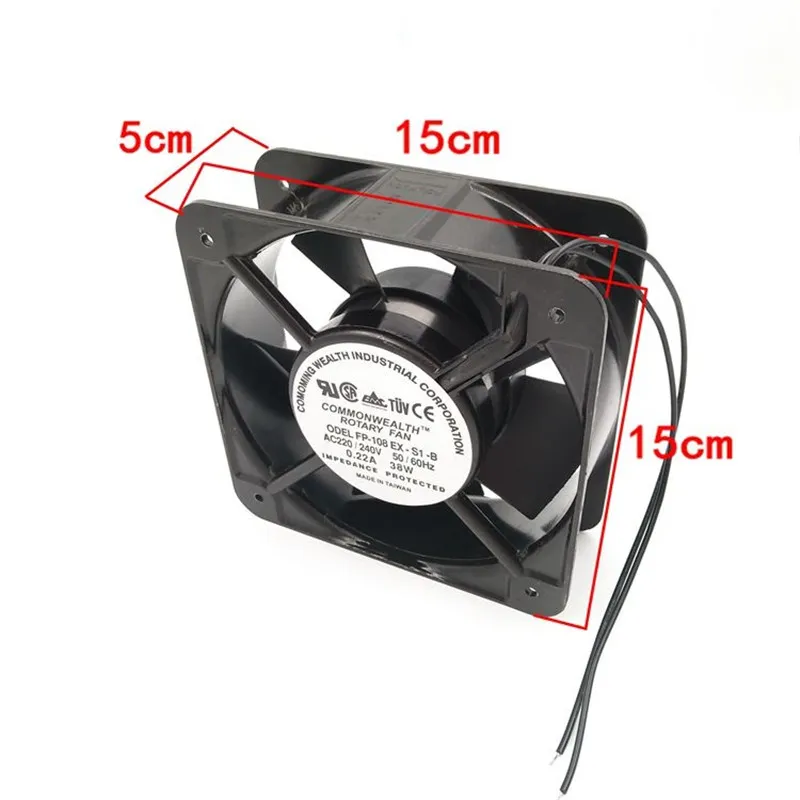

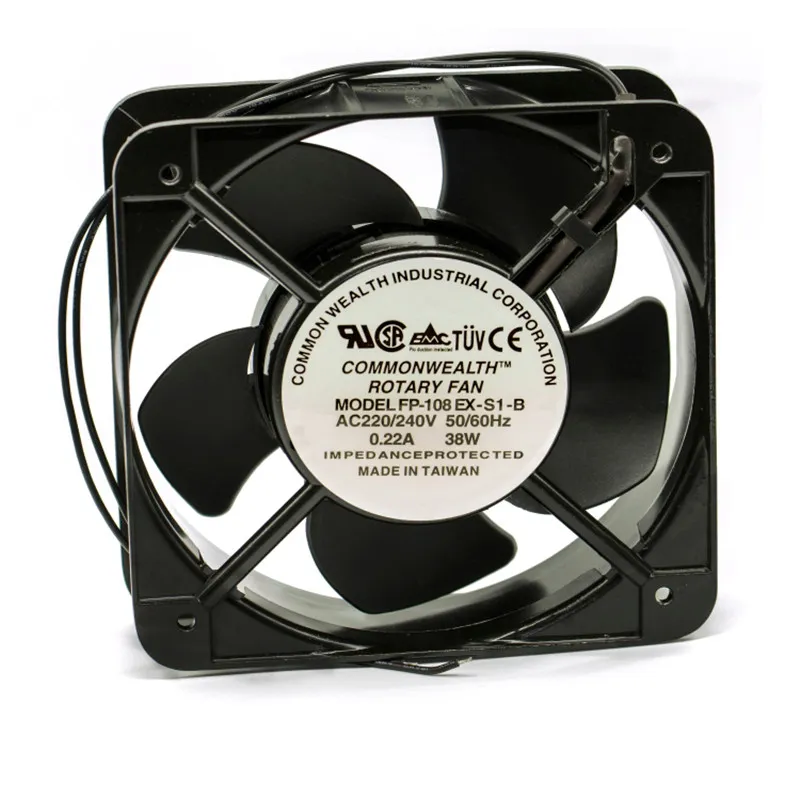

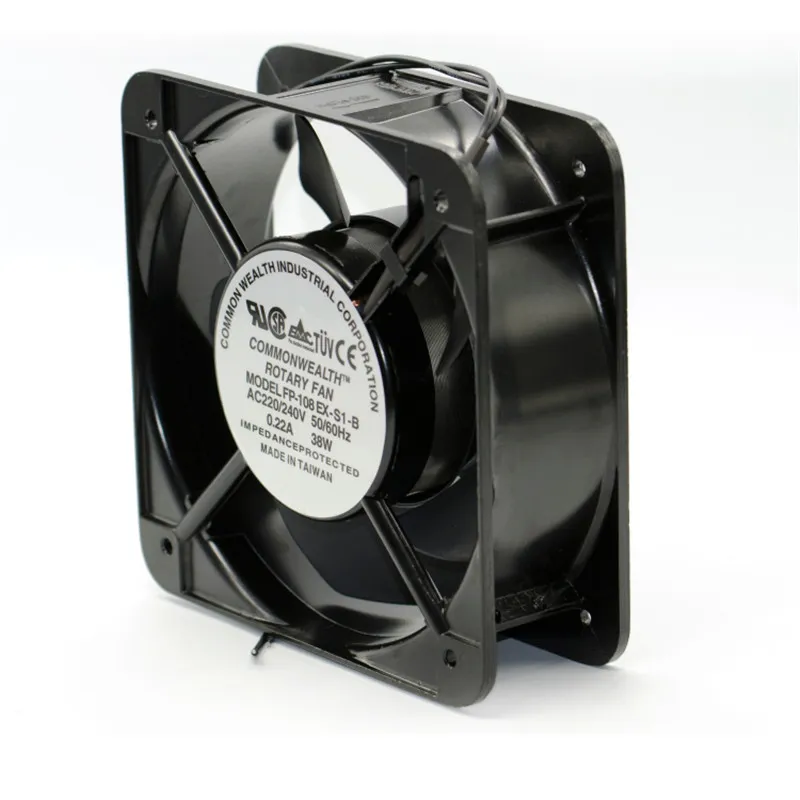

FP-108EX-S1-B AC220V 38W industiral Double ball bearing electrical cabinet cooling fan

Description

Model Number:FP-108 EX-S1-B

Bearing structure: ball

Voltage: DC 220V

Power: 38(W)

Frequency: 50/60 (Hz)

Speed: 2700-3100(R/min)

Wind volume: 5.37/6.88 (M3/min)

Noise: 55/60 (dB-A)

Weight: 840(g)

Packing: Ordinary cardboard box packing 24 / 1 FCL; single without packaging

Frame: black paint aluminum alloy die-casting anti-corrosion, moisture-proof structure;

Wind leaf: injection molding, PBT + 30% glass line + VO flame retardant;

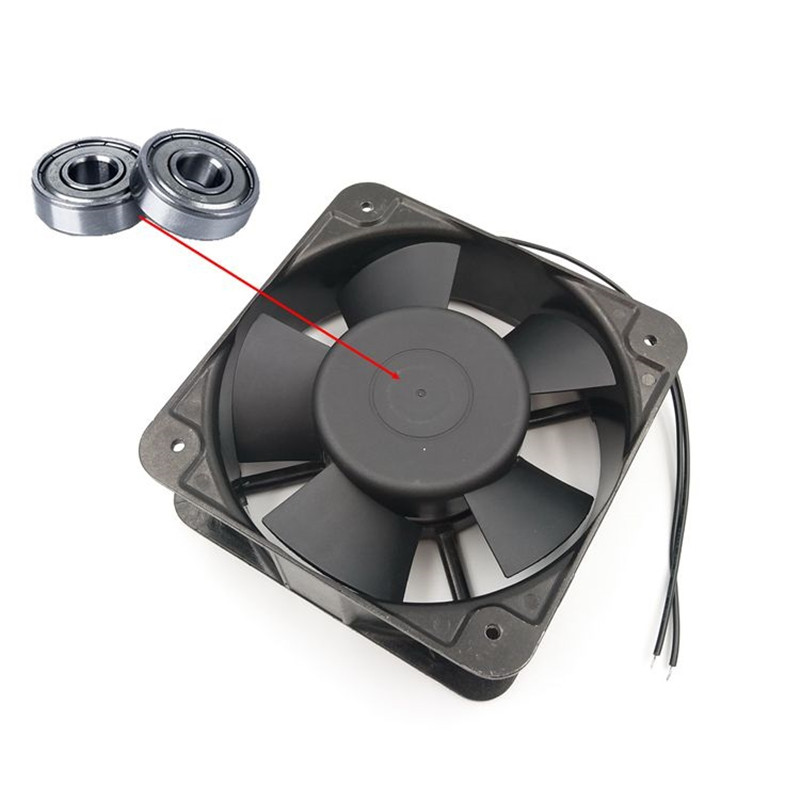

Bearing: High-precision, long-life, low-noise imported ball bearings;

Insulation: The enameled wire adopts class B insulation, and the temperature resistance is 120 degrees Celsius;

Wiring method: lead type (length 25CM)

Insulation resistance: more than 500 megohms;

Withstand voltage: leakage current 0.5mA. withstand voltage 1500V/1 minute;

Operating voltage: 220V (voltage range: 185V to 245V)

Fan rotation: counterclockwise from the blade direction;

Life: working environment temperature 40°C B: (ball bearing) 30000 (hours)
