Description
Motor M2S052-CA
Phase 1~ 1~
Nominal voltage / VAC 230 230
Frequency / Hz 50 60
Method of obtainingdata fa fa
Valid for approval/standard CE CE
Speed (rpm) / min-1 2800 3250
Power consumption / W 45 39
Current draw / A 0.31 0.25
Max. back pressure / Pa 80 120
Min. ambienttemperature / °C -25 -25
Max. ambienttemperature / °C 50 70
Starting current / A 0.45 0.40
Detailed Images
Product detailed information

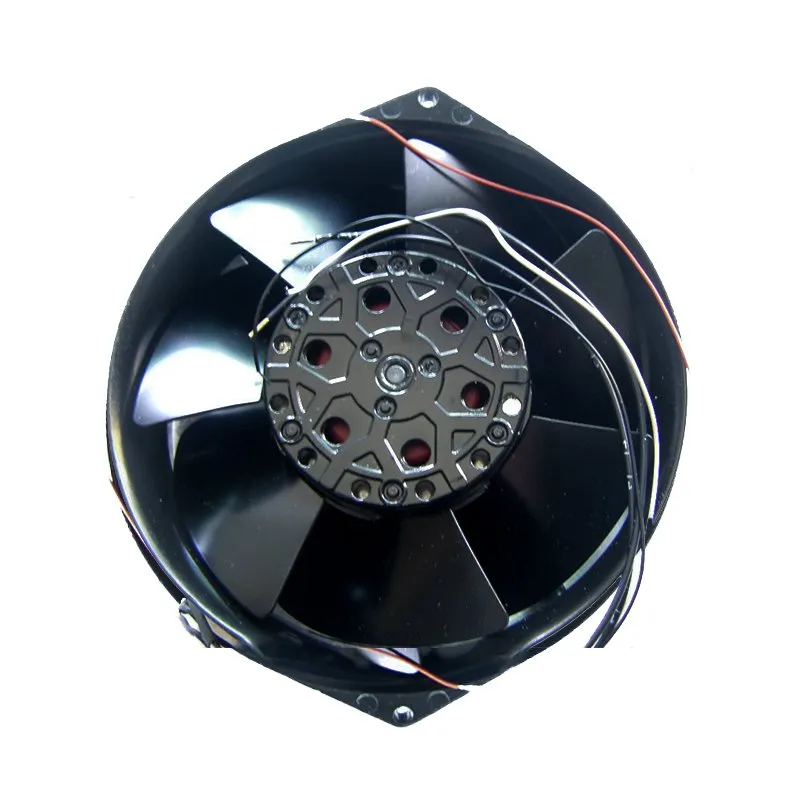

Ebm-papst W2S130 tube mounted axial AC fan
An axial fan is a device that generates airflow by rotating a blade enclosed in a square or circular frame using a motor. The rotating fan blade draws air into the fan and vents the airflow in the same direction, flowing through the surface to cool it. Axial fans are very important components to ensure smooth operation of mechanical and electronic equipment. Keeping equipment cool is critical because overheating can lead to intricate conditions, including premature component degradation, reduced life, and sometimes complete damage.
WS2130 tube mounted axial AC fan
The Ebm-papst W2S130 Series Tube Mounted Axial Fans provide a convenient, affordable solution for all your cooling needs. This compact, high performance equipment cooling fan is designed to generate large amounts of air at low pressures. The low-noise energy-saving fan is made of die-cast aluminum frame with a black coated impeller. The impedance guard pole motor can be integrated into the central fan hub.
Main features and advantages of the W2S130 ebm-papst axial fan
• Small size allows the fan to be integrated into devices with limited component mounting controls.
• Rugged aluminum construction, ideal for industrial applications.
• Black coated steel plate impeller that can be welded directly to the rotor.
• Ingeniously designed streamlined fan blades provide excellent efficiency and low noise levels.
• Impedance-shielded pole motor prevents the fan motor from burning out when the rotor is locked.
• Maintenance-free ball bearing system for excellent performance and life expectancy
• Balanced on two planes in accordance with DIN ISO 1940
• IP20 dust intrusion protection
Advantages of the ebmpapst fan
1) Air flow up to 35000m3 / h
2) Sturdy steel plate
3) Compact design of external rotor motor
4) Forced electronic cooling
5) Suitable for a variety of applications
6) 100% speed control via analog or serial interface
7) Simple start-up with perfectly matched components: open loop control, motor, fan
8) Plug and play
Our service
Quality assurance is the premise: brand new original authentic, ebm-papst original factory custom.
Price concessions are the basis: as an Priscilla-level authorized agent, we have a more affordable price for your reference.
Enthusiasm is the attitude: every customer is a boon to us, we will be full of passion and hospitality.
Good selection plan : the technician can provide you with a more perfect fan solution, avoiding the wrong selection of the fan, thus you will no longer worry about the selection of the fan.mpact design. The entire product line is available in both AC and GreenTech EC technology.
Application field
Medical Rail vehicle Drive cooling Hotel
Industrial cleaning Electronic product New energy vehicles Supermarket
Regards for the Centrifugal/Axial fan,we have many differents models following for your reference,
any your requirements ,our group will try our best to serve you
