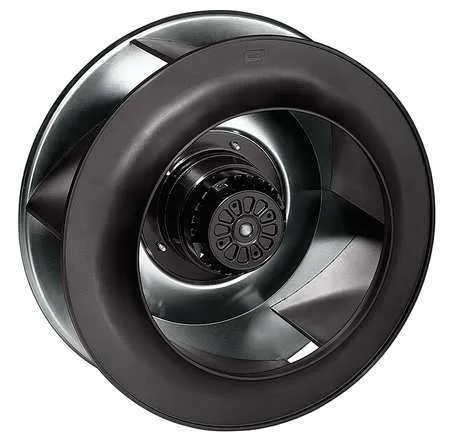

EBMPAPST R4E355-AF05-09 Motorized Impeller 14-1/8 in 230VAC fan
EBMPAPST R4E355-AF05-09 Motorized Impeller 14-1/8 in 230VAC fan

EBMPAPST R4E355-AF05-09 Motorized Impeller 14-1/8 in 230VAC fan

$379.82

987 in stock

SKU: R4E355-AF05-09 Category: Tag: Brand:

Description

EBM-PAPST R4E355-AF05-09 Motorized Impeller, 14-1/8 in 230VAC

Motorized Impeller, Impeller Type Backward Curve, Motor Type Permanent Split Capacitor, Fan Dia. 14-1/8 In., CFM @ 0.000-In. SP 1612, Voltage 230VAC, 1.33 Amps, 270 Watts, 70 dBA, Max. Ambient Temp. 104 Degrees F, Depth 6-1/2 In., Bolt Circle Dia. 3-1/2 In., Blade Material Fiberglass Reinforced Polyamide, Mounting Position All Position Except Rotor Up, 60 Hz, Thermal Protection Auto, Standards UL & CSA Component Recognized Motor

Additional information

Weight 7 kg
Blade Material

Fiberglass Reinforced Polyamide
Watts

270
Impeller Type

Backward Curve
Bolt Circle Dia. (In.)

3-1/2
Fan Dia.

14-1/8"
CFM @ 0.000-In. SP

1612
dBA

70
Max. Ambient Temp. (F)

104
Mounting Position

All Position Except Rotor Up
Max. Ambient Temp.

104 Degrees F
Bolt Circle Dia.

3-1/2"
Hz

60
Motor Type

Permanent Split Capacitor
Depth (In.)

6-1/2
Amps

1.33
Voltage

230VAC
MPN

R4E355-AF05-09
Brand

EBM-PAPST
Agency Compliance

UL & CSA Component Recognized Motor
Depth

6-1/2"
NumberOfItems

1
Thermal Protection

Auto
