Ebm Papst S4D500-AD03-01 AC 400~480V Refrigeration Chillers Condenser fan

$469.99

999 in stock

SKU: S4D500-AD03-01 Category: Tag: Brand:

Description

brand: ebmpapst
model number: S4D500-AD03-01
Voltage : 400~480V
0.95~1.86A 500x500mm
Lead : 3 Lines
Size : 500x500mm.
item condition: new

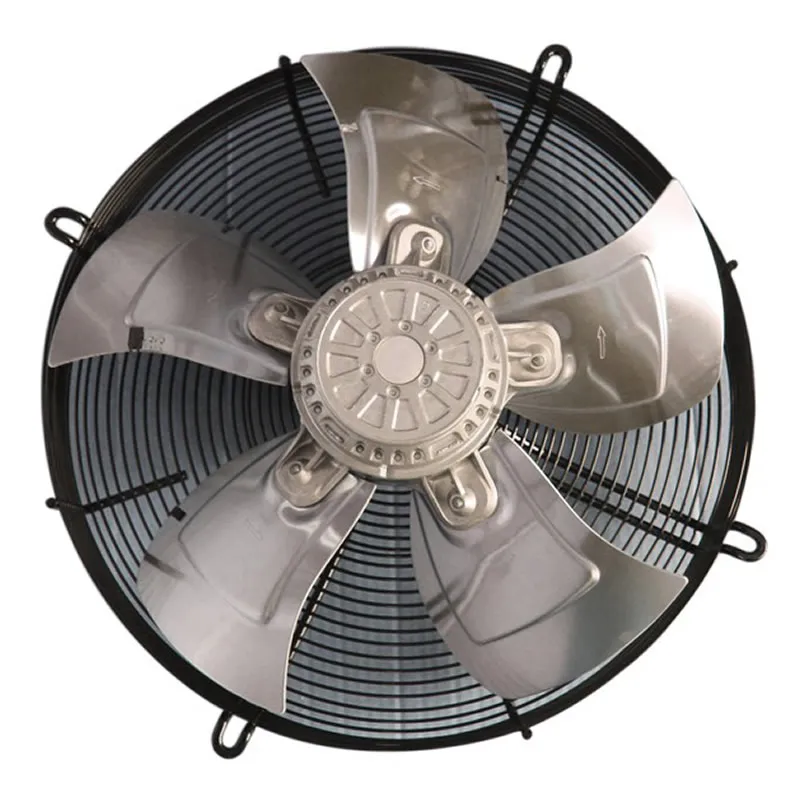

S4D500-AD03-01 AC axial fan with guard grille for short nozzle,sickled blades (S series)
Type:S4D500-AD03-01

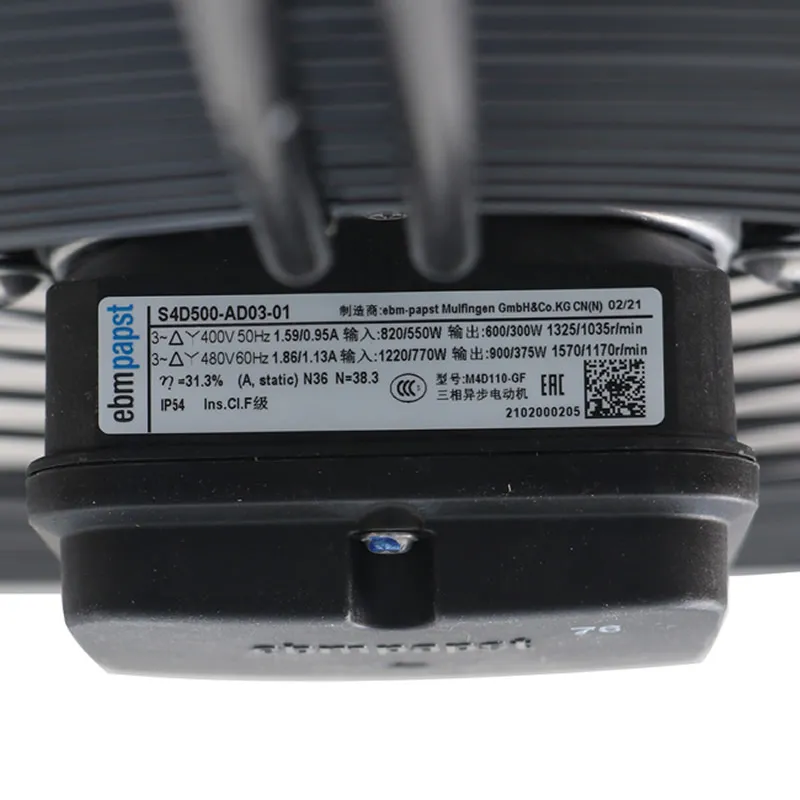

Motor:M4D110-GF
Nominal voltage:400V
Frequency:50~60Hz
Speed:1325 min-1
Current draw:1.59A
Air flow :9590m3/h
Leackage current: <= 3,5 mA Size: 500 mm Operation mode: S1 Mounting position: Any Electrical leads: Via terminal box Blade angle: 0 ° Direction of air flow: "V" Insulation class: "F" Cable exit:Axial Condensate discharge holes: On rotor and stator sides Bearing-motor: Ball bearing Mass: 15.5 kg Material of terminal box: ABS plastic, black Material of blades :Die-cast aluminum Material of guard grille: Steel, phosphated and coated in black plastic Motor protection: Thermal overload protector (TOP) brought out Product conforming to standard: CE; EN 61800-5-1 Surface of rotor: Cast in aluminum Number of blades :5 Type of protection: IP 54 Protection class :I Approval :GOST; VD

Additional information

Weight 25 kg
Model Number

S4D500-AD03-01

Power Interface

3PIN

Noise

00000 hrs

Fan Size

500x500mm
