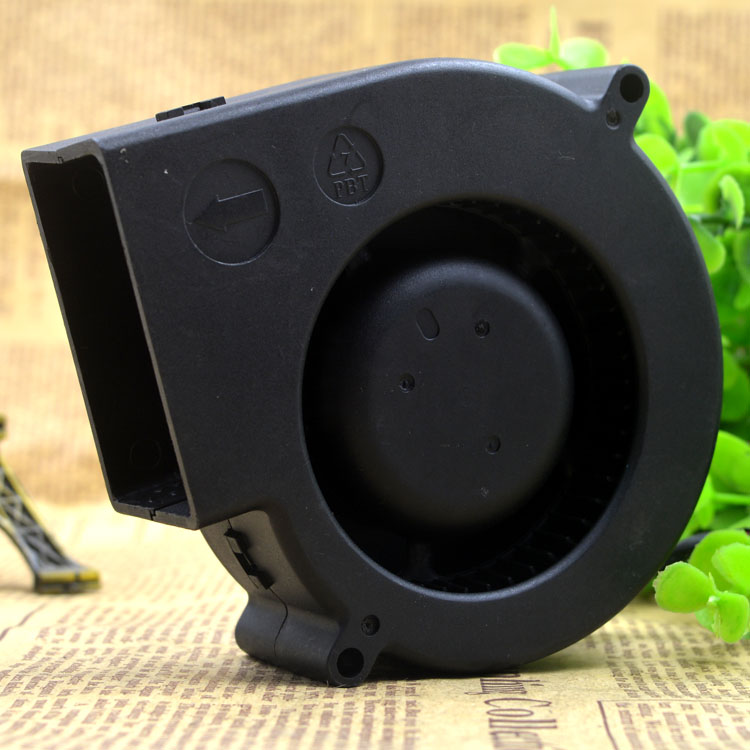

Delta BFB1012M-SM25 DC12V 0.60A 9.6W 3-wires cooling fan

Description

Model: BFB1012M-SM25
Lead: 3 pin
Size: 97 * 94 * 33mm
Voltage: DC 12V
Operating voltage range: 4.0-13.8V
Identification current: 0.60A
Operating current: 0.45A
Work input power: 9.6W
Speed: 2600 RPM
Air volume: 25.43 CFM
Wind pressure: 1.00 IN H2 O
Noise: 30 d-BA
Fan frame: injection molding, PBT + 30% glass fiber + VO grade flame retardant
Blade: injection molding, PBT + 30% glass fiber + VO grade flame retardant
Fan rotation: counterclockwise as viewed from fan blade
Storage temperature: -50 degrees Celsius to +90 degrees Celsius
Bearings: high precision ball bearings
Insulation resistance: greater than 500 megohms
Withstanding voltage: sink current 0.5mA 500V / 1 minute
Working life: ambient temperature of 25 degrees when 80,000 hours

Packing:X1 BFB1012M-SM25 Cooling Fan
