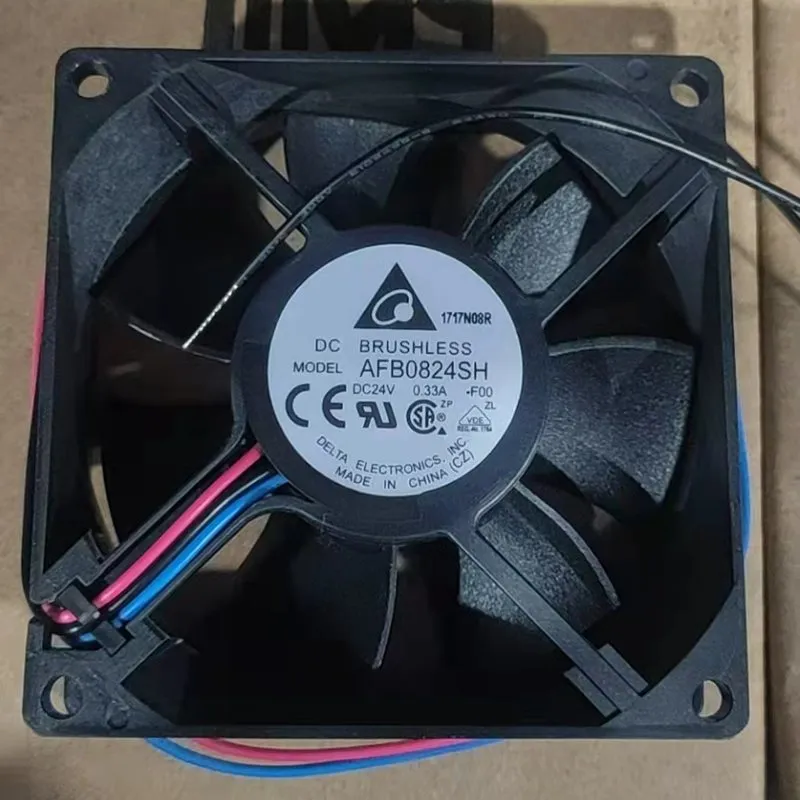

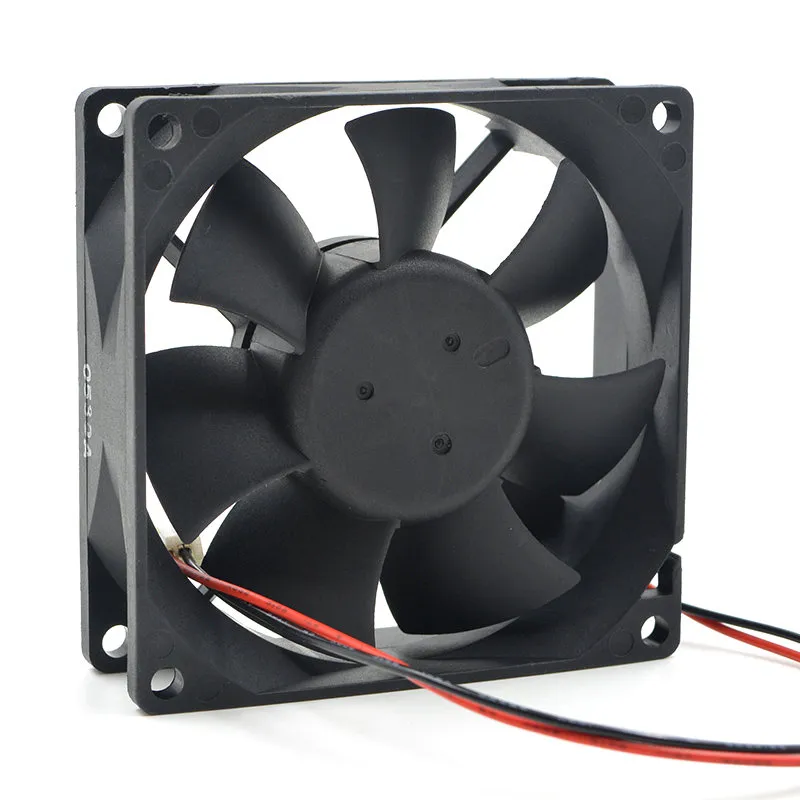

Delta AFB0824SH 24V 0.33A 8CM Inverter cooling Fan

(4 customer reviews)

$7.99$9.99

Clear
SKU: AFB0824SH Category: Tag: Brand:

Description

80 * 80 * 25 0.33A Fan parameters:

Model: AFB0824SH

Lead: 3PIN speed function

Size: 80 * 80 * 25.4mm

Voltage: DC 24V

Wind pressure: 0.267 IN H2O

Noise: 40 d-BA

There is no connector by default, please contact us if you need to install a connector!
AFB0824SH, have 2-wires
AFB0824SH-F00, Have 3-Wires,With speed test control
AFB0824SH-R00, Have 3-Wires,With stop rotation warning

Additional information

Weight 0.5 kg
Model Number

AFB0824SH

Brand Name

Delta

Air Volume

30CFM

Lines

3 Lines

Application

Graphics Card

Power

3.84W

Heatsink Material

Copper & Aluminum

Type

Fan

Package

No

Fan Speed Control

2500RPM

Fan Size

80x80x25mm

Compatible CPU

1

Bearing

Fluid Bearing

Fan Life

30000 hrs

Model

AFB0824SH 2-Wires, AFB0824SH-F00 3-Wires, AFB0824SH-R00 3-Wires

Series

AFB

RPM

4000RPM

Voltage Rated

24VDC

Operating Temperature

-10~+60⁰C

Air Flow

46.62CFM (1.320 m3/min)

Noise

40.0 dB(A)

Current Rating

0.16A

Lifetime @ Temp

70000 Hrs@40⁰C

Material Frame

Plastic
