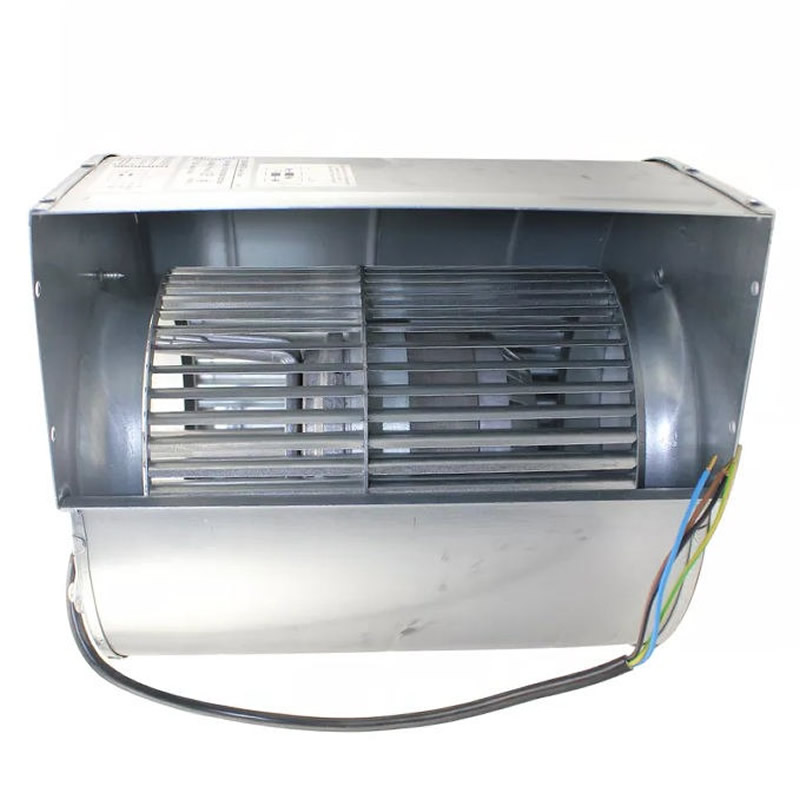

D2E146-AP47-02 ebmpapst AC230V blower fan

Description

D2E146-AP47-02 ebmpapst AC centrifugal blower,Dual inlet, forward curved,Without flange,: Sendzimir galvanized sheet stee,Sendzimir galvanized sheet steel
Fan dimensions:219x206x270mm
Power consumption:300W
Current rating:1.3A
Fan efficiency:970m3/h
Noise level:63dBA
Kind of Bearing:ball bearing
Rotational rate/speed:2050rpm
Frequency:50Hz
Impeller material:metal
Enclosure material:metal
Insulation class:B
IP rating:IP44
Leads:4 leads
Operating temperature:-25…40°C
Cable length:350mm
Fan motor:M2E068-EC
Supply voltage:230V AC
Bearings: Maintenance-free ball bearings
Masse: 4,2 kg
