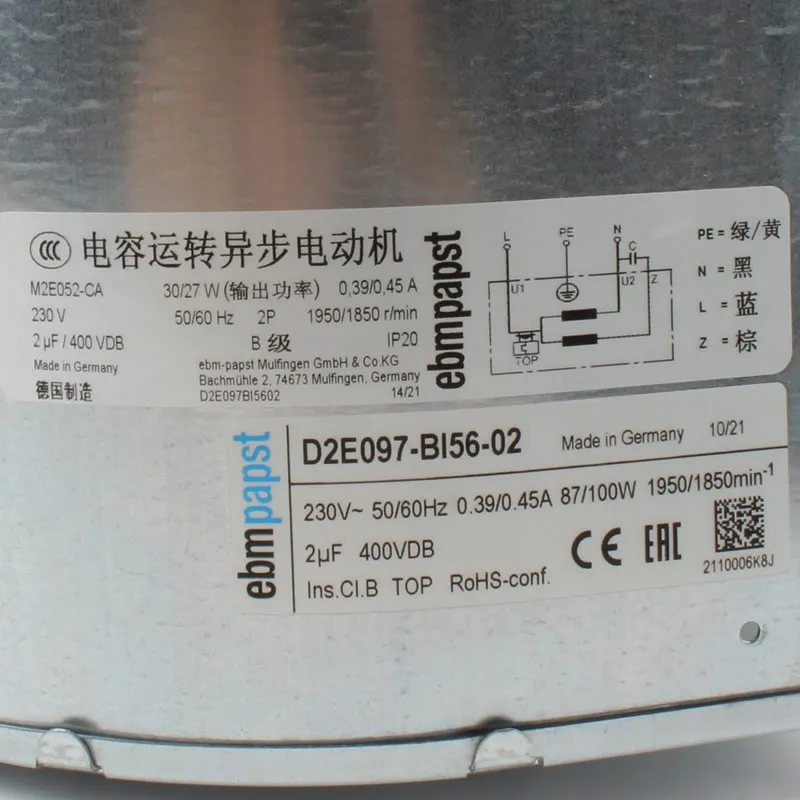

D2E097-BI56-02 ebmpapst AC230V 0.39A centrifugal fan

Description

D2E097-BI56-02 AC centrifugal fan,forward-curved, dual-intake,with housing (without flange)
Type:D2E097-BI56-02
Motor:M2E052-CA
Manufacturer: ebmpapst
Nominal voltage:230VAC
Frequency:50~60Hz
Speed (rpm):1950~1850min-1
Power consumption:87~100W
Current draw:0.39~0.45A
Capacitor:2µF
Capacitor voltage:400VDB
Min. ambient temperature:-25°C
Max. ambient temperature:40°C
Weight:1.5 kg
Fan size:97 mm
Degree of protection:IP20
Motor bearing:Ball bearing
Product Category: Blowers & Centrifugal Fans
Size:162x165mm
