Description

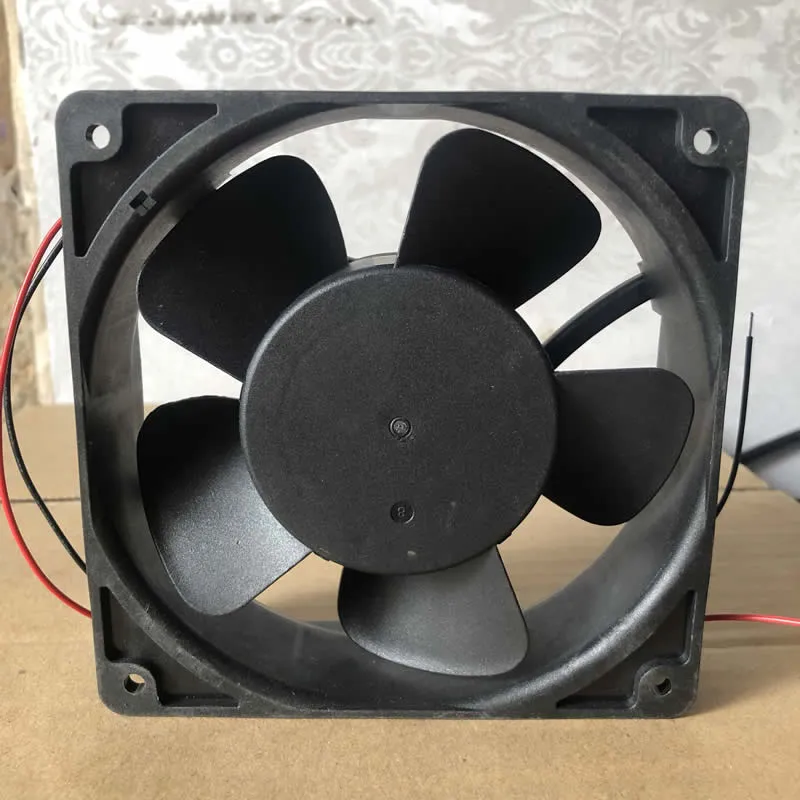

Standard Specifications of D12B07HWBZ00 DC Axial Compact Fan:
Dimension 120x120x38
Rated Voltage 48 Vd.c.
Rated Power (W) 9.6
Max Air Flow (m3/h) 178
Static Pressure (Pa) 66
Rated Speed (RPM) 2800
Noise (dB(A)) 42.8
Bearing Type Ball
Casing material: Black fibreglass reinforced plastic (PBT) UL 94V-0
Impeller material:Black fibreglass reinforced plastic (PBT) UL 94V-0
Protection degree: IP20, according to EN 60529 standard
Fixing system: by No. 4 M4 screws
Motor protection: IC
Storage temperature: from -40°C to +70°C from -10°C to +70°C (ball bearing); from -10°C to +60°C (sleeve bearing)
Rated temperature range: 70,000 h at 40°C and 40,000 h at max temperature (ball bearing); 50,000 h at 40°C and 35,000 h at max temperature (sleeve bearing) Lifetime L10 at 40°C:
Electrical connection: 2 leads 24AWG UL 1007, 300 mm long.
Weight: 156g
Approvals: UL E223195
