Description

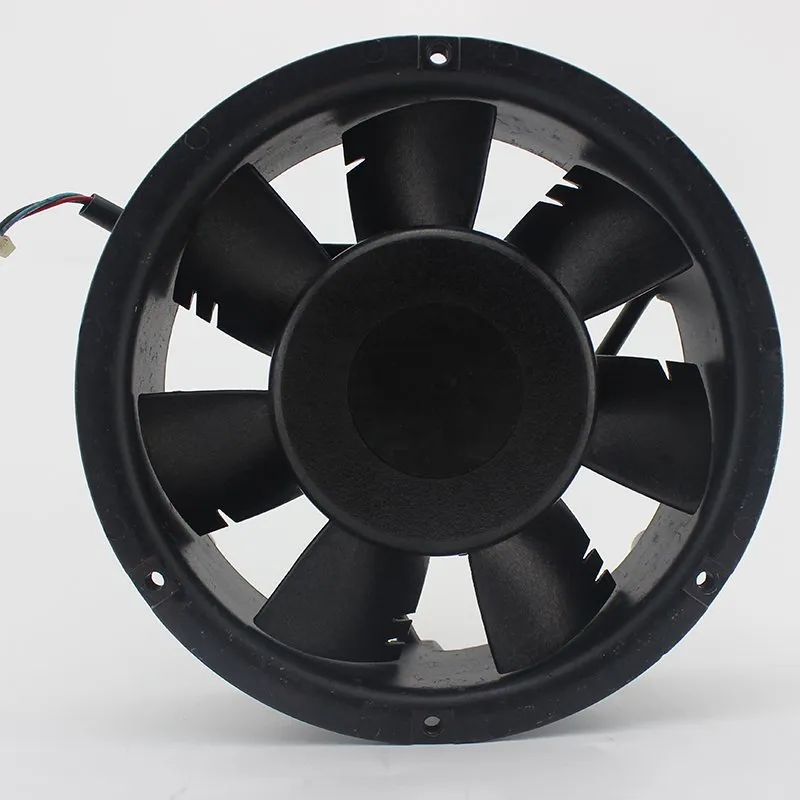

Model :PQ48ROX
Manufacturer Comair Rotron
Series Patriot
Part Status Active
Voltage – Rated 48VDC
Size / Dimension Round – 171.4mm Dia
Width 50.80mm
Air Flow 235.0 CFM (6.58m³/min)
Static Pressure –
Bearing Type Ball
Fan Type Tubeaxial
Features PWM Control, Speed Sensor (Tach)
Noise 51.2 dB(A)
Power (Watts) 22.00W
RPM 3475 RPM
Termination 4 Position Rectangular Connector
Ingress Protection –
Operating Temperature 14 ~ 158°F (-10 ~ 70°C)
Approvals CE, cUL, UL
Weight –
Current Rating 0.460A
Voltage Range 24 ~ 56VDC
Material – Frame Aluminum
Material – Blade Plastic
Lifetime @ Temp. 75000 Hrs @ 40°C
