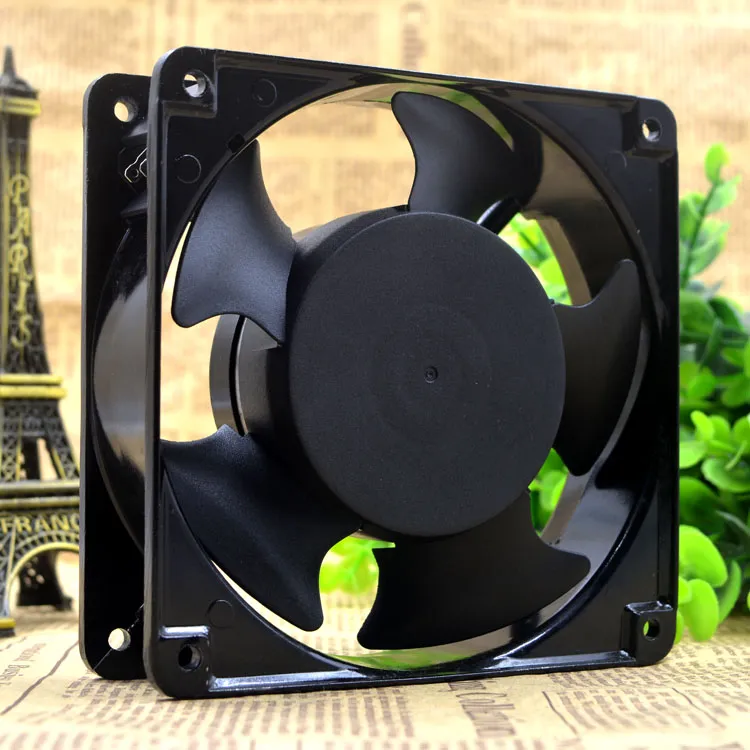

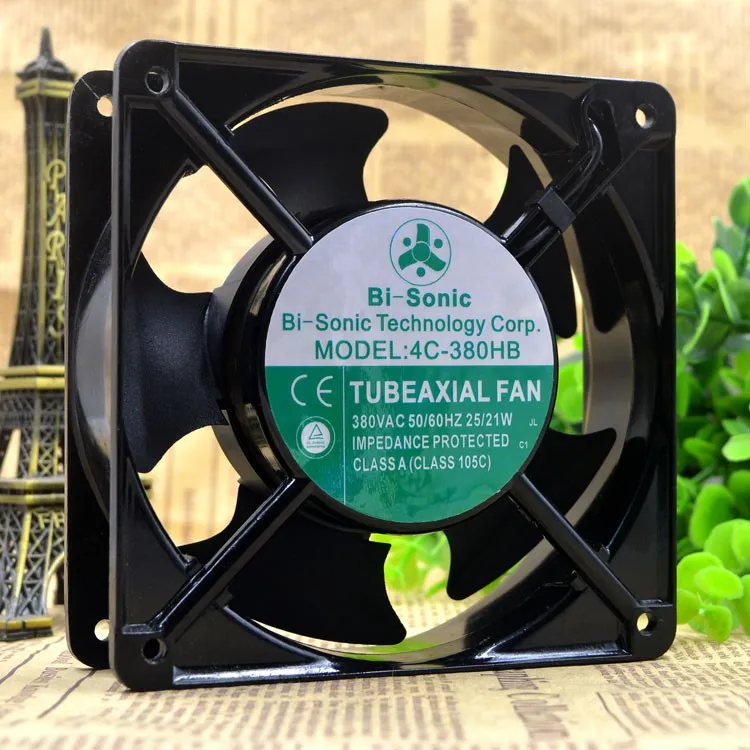

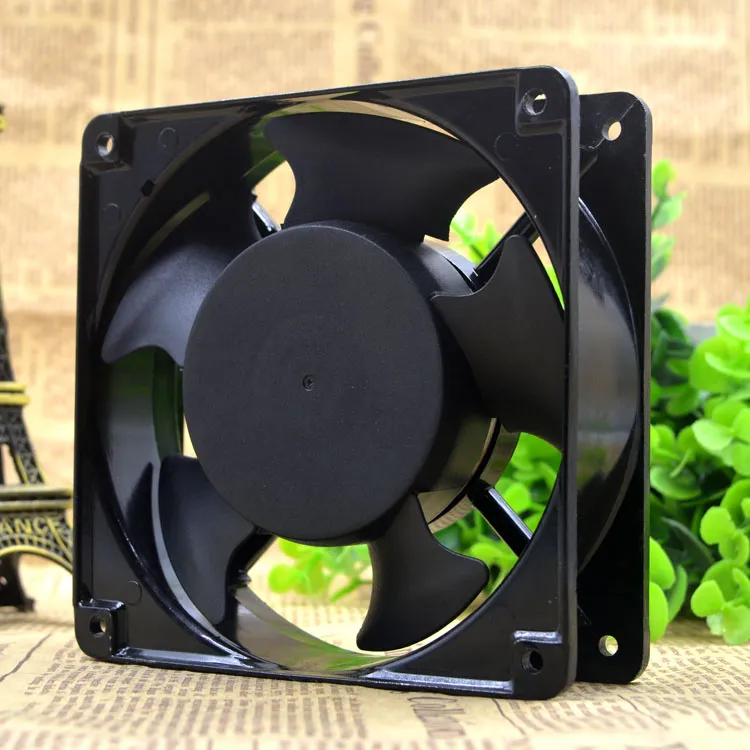

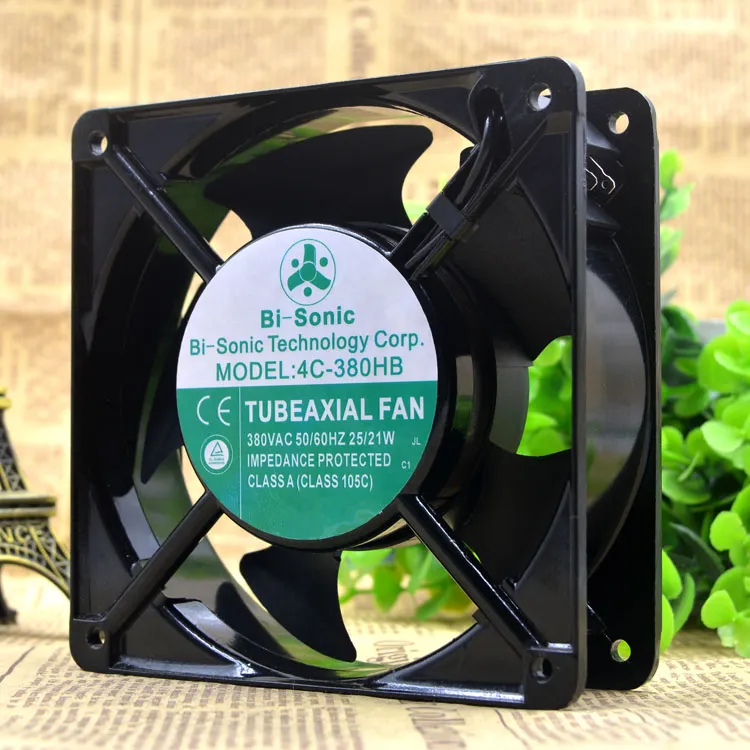

Bi-Sonic 4C-380HB AC380V 12CM 2-wires cooling fan

Description

Model: 4C-230HB
Brand: Taiwan Bi-Sonic
Size: 120 × 120 × 38 mm
Voltage: 220/240 V
Air volume: 89CFM
Power: 19 / 22W
Number of revolutions: 2650RPM
Noise: 46DB-A
Origin: Taiwan
Frame material: aluminum alloy
Motor: Shaded-pole motor structure
Frame: Black-painted aluminum alloy die-casting anti-corrosion and moisture-proof structure
Wind blade: high temperature resistant plastic fan blade;
Bearing: oil bearing;
Insulation: The enameled wire adopts Class B insulation and can withstand high temperature of 75 degrees Celsius;
Insulation resistance: more than 800 megohms;
Withstand voltage: leakage current 0.5mA, withstand voltage 2300V / 1 minute;
Operating temperature: -30 degrees Celsius to +75 degrees Celsius
Storage temperature: -30 ° C to + 75 ° C
