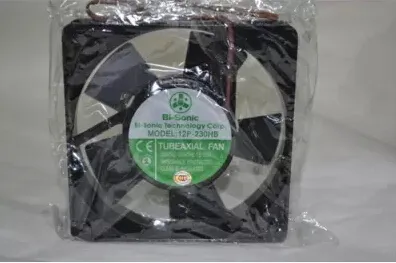

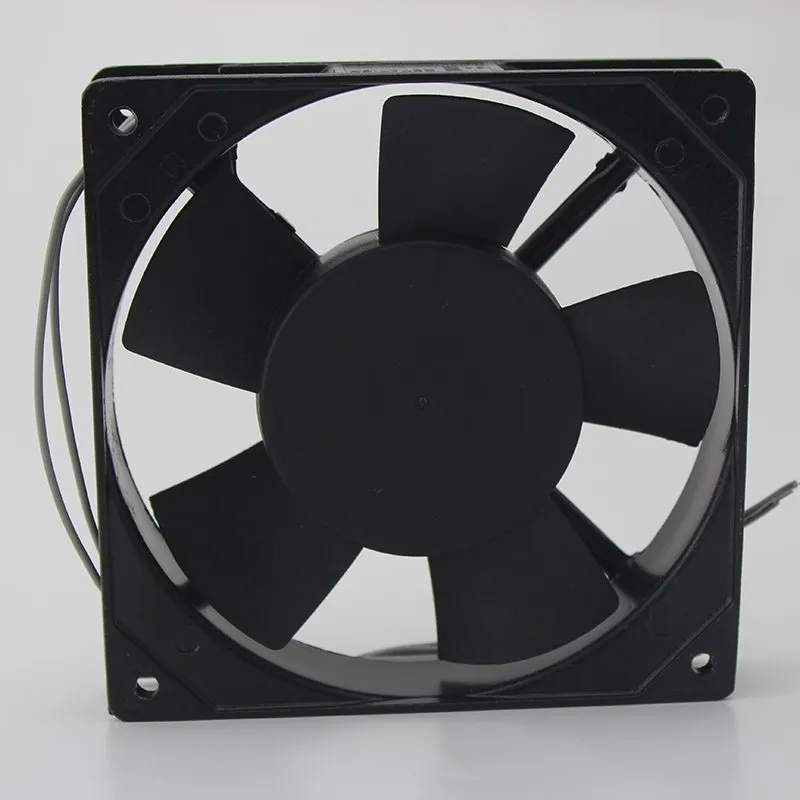

Bi-Sonic 12P-230HB 12025 230V cabinet chassis fan

Description

Model: 12P-230HB
Size: 120 * 120 * 25 mm
Brand: Bi-Sonic
Bearing: Double ball bearing
Voltage: 230 V
Current: 0.095 A
Speed: 2200 RPM
Power: 18 W
Air volume: 55 CFM
Wind pressure: 2.7 mmH2O
Specification / carton: 108 pcs / carton
Frame material: die-cast aluminum alloy
Fan blade material: Advanced PBT
Weight: 0.5KG
made in China

1 ball bearings;

2 plastic UL 94V-0 fan;

3 black or color aluminum frame;

4 the shaded pole motor, impedance protection;

5 with lead wire.

6 suitable temperature: -20 degrees to degrees +80 ball bearing

Oil bearing -10 degrees +70 degrees to

7 insulation resistance: the minimum 10M Omega, 500VDC

8 insulation: the minimum 1mA, 2000VAC/50-60Hz

The 9 voltage range of use: 110/120V (85V to 125V)

220/230V (190V 245V)

6.CE, TUV and other international certification.
