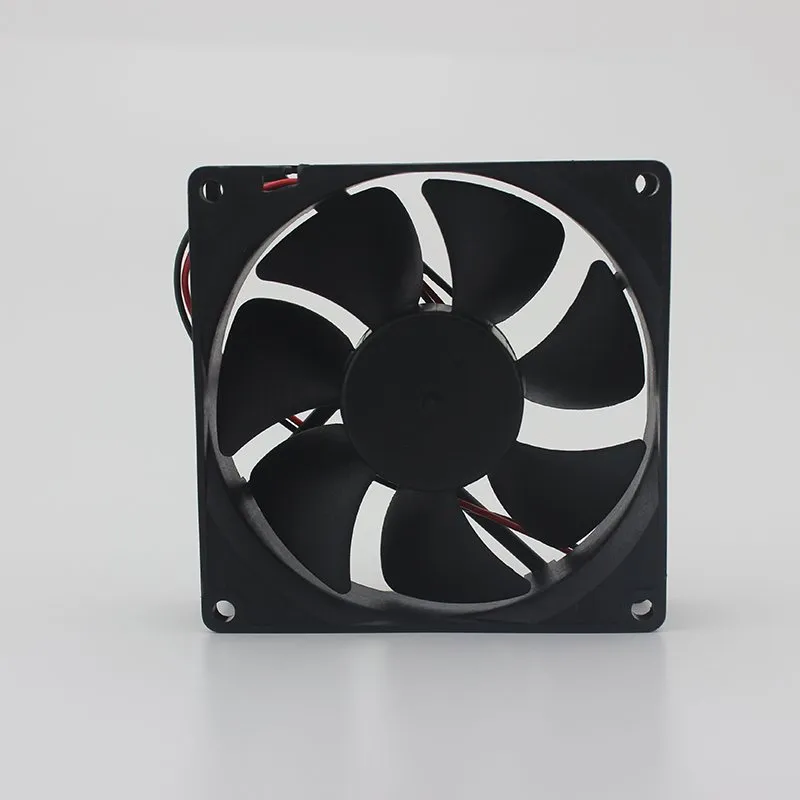

ADDA AD0924UB-A71GL 24V 0.21A 9CM 2-wire inverter fan

Description

Model: AD0924UB-A71GL

Size: 92 * 92 * 25MM that is 90 * 90 * 25MM

Bearing: high precision double ball bearing

Voltage: DC24V

Current: 0.21A

Speed: 3300rpm

Noise: 39.4dB A

Air volume: 56.95CFM

Wiring: 2P cable (2.54 plug)

Fan rotation: counterclockwise as viewed from fan blade

Operating temperature: -10 degrees Celsius to +70 degrees Celsius

Storage temperature: -40 degrees Celsius to +70 degrees Celsius

Power range: plus or minus 15% of rated power supply

Insulation resistance: greater than 500 megohms

Withstanding voltage: sink current 0.5mA 500V / 1 minute

Working life: ambient temperature of 25 degrees when 80,000 hours

Scope: inverter dedicated
