Description

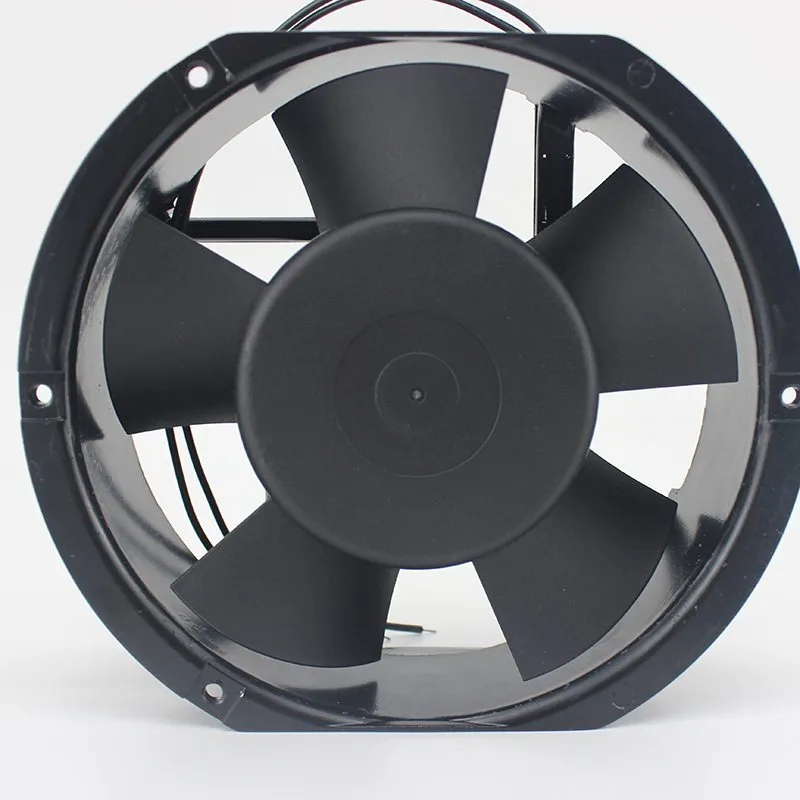

Brand: Japan GULF INDSTRIAL ROTARY FAN
Type: ABSL 172
Bearing structure: SLEVEE (double ball)
Voltage: AC220 ～ 240V
Power: 50.6 (W)
Frequency: 50/60 (Hz)
Speed: 2700-3100 (R / min)
Air volume: 5.37 / 6.88 (M3 / min)
Noise: 55/60 (dB-A)
Weight: 840 (g)
Packing: 24 pcs / 1 full carton;
Frame: Black-painted aluminum alloy die-casting anti-corrosion and moisture-proof structure;
Wind blade: one-shot injection molding, PBT + 30% glass line + VO flame retardant;
Bearing: Imported high-precision, long-life and low-noise imported ball bearings;
Insulation: The enameled wire adopts Class B insulation and has a temperature resistance of 120 degrees Celsius;
Wiring method: lead type (line length 25CM)
Insulation resistance: above 500 megohms;
Withstand voltage: leakage current 0.5mA. Withstand voltage 1500V / 1 minute;
Operating voltage: 220V (voltage range: 185V ～ 245V)
Fan rotation direction: counterclockwise when viewed from the direction of fan blades;
Life: working environment temperature 40 ℃ B: (oil bearing) 30000 (hours)
